QNAP TS-932PX-4G NAS
The QNAP TS-932PX-4G NAS is a powerful 9-bay storage solution designed for small to medium businesses that need high-speed connectivity, reliable data protection, and flexible scalability. Featuring an AnnapurnaLabs AL-324 quad-core 1.7 GHz processor, 4GB DDR4 RAM (expandable), and dual 10GbE SFP+ plus dual 2.5GbE RJ45 ports, it ensures fast data transfer and smooth multitasking.
With support for up to 132TB raw capacity, RAID protection levels, SSD caching, and QNAP’s QTS 5.2 operating system, the TS-932PX-4G is ideal for file sharing, backup, virtualization, and surveillance applications. It also integrates seamlessly with cloud services, offering hybrid storage and backup flexibility.

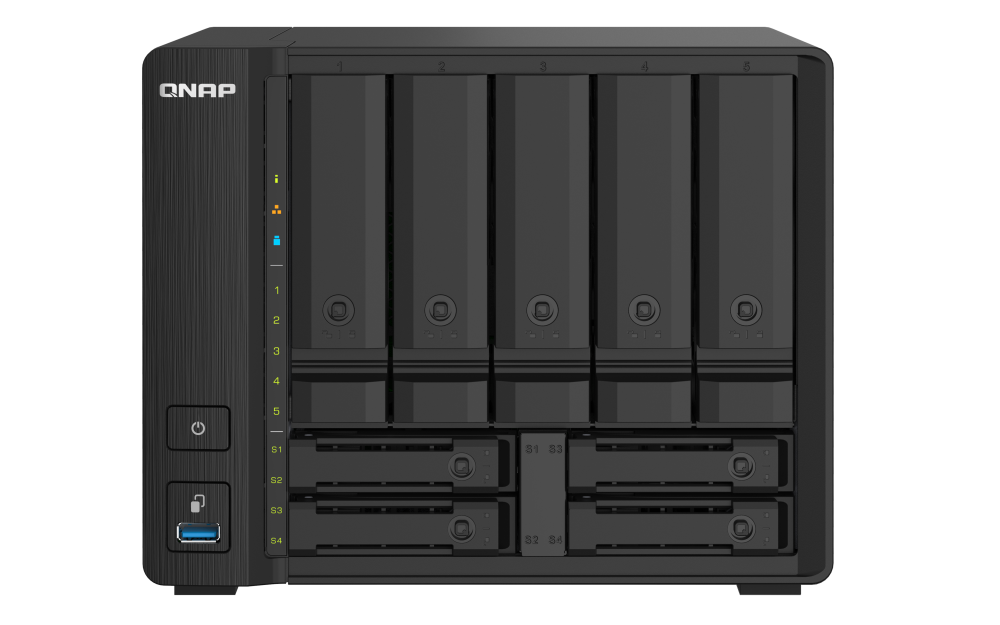

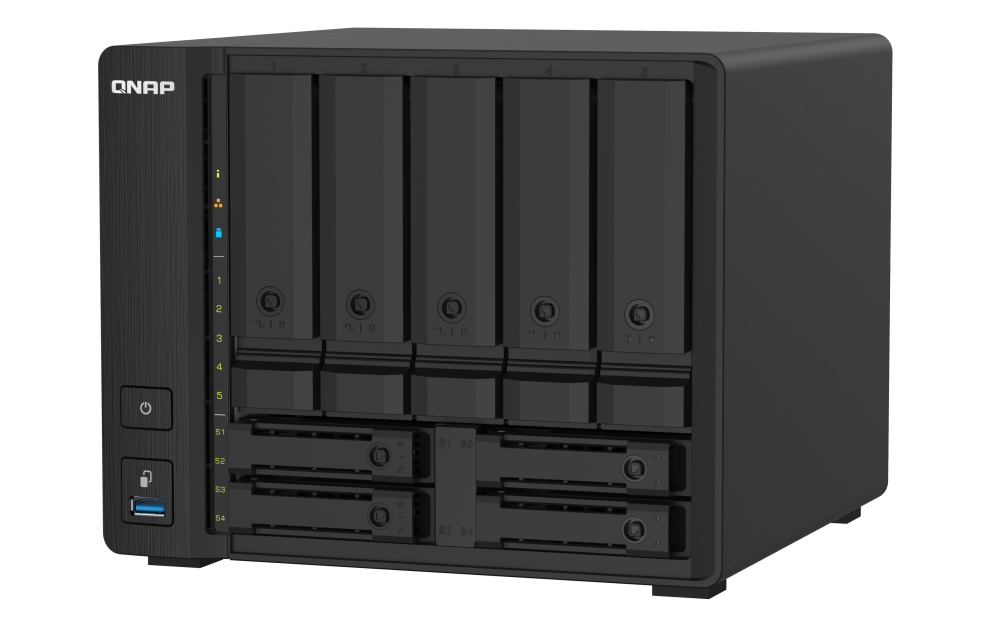

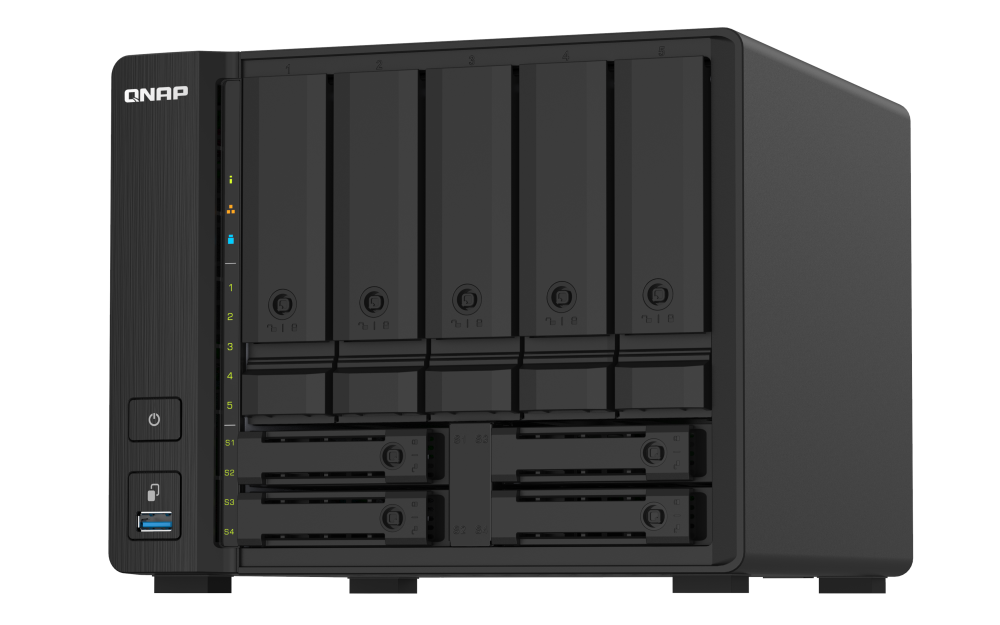

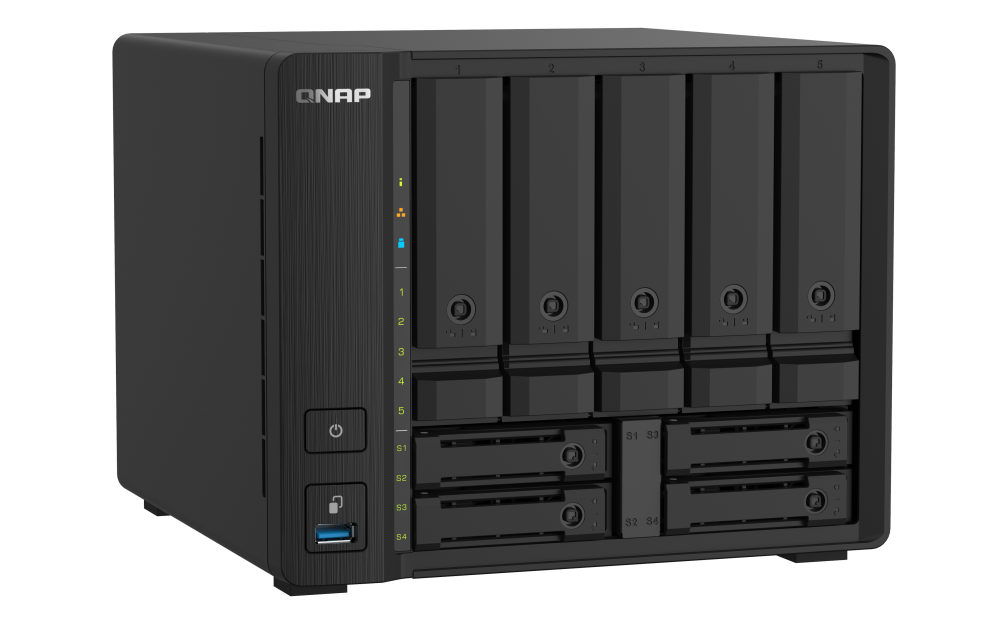

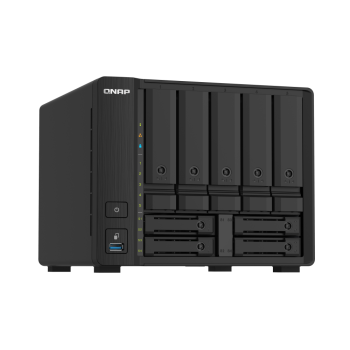

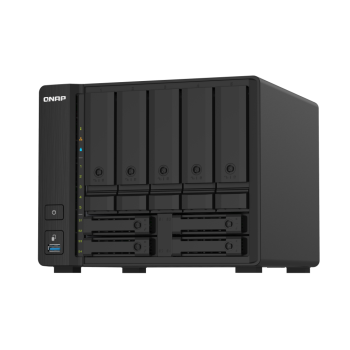

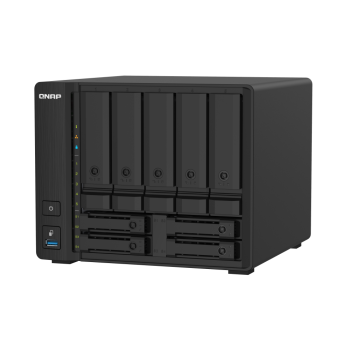

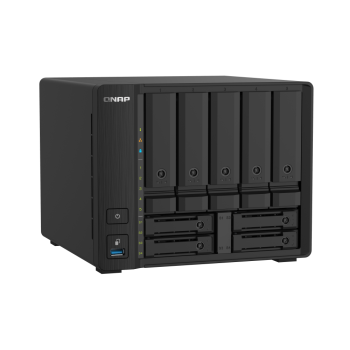

The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.
- HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times.
- Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.
- Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
- Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
- Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD.
Energy-efficient Quad-core Processor
Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-932PX features is highly energy efficient without impacting system or application performance.
Supports AES-128-GMAC for SMB signing acceleration
SMB signing (also known as security signatures) is a security mechanism in the SMB protocol. For business applications that demand high-level security, SMB signing helps enhance file sharing security by protecting against interception attacks. However, SMB signing can also negatively impact data transmission performance. QTS 5.1.0 supports AES-128-GMAC signing acceleration (only in Windows Server 2022 and Windows 11 clients) that not only greatly increases data signing efficiency over SMB 3.1.1 but also enhances the CPU utilization of the NAS system – providing the best balance of security and performance
x86 64-bit NAS
2X Faster
AES-CMAC: 619 MB/s Read
AES-128-GMAC: 1238 MB/s Read
ARM 64-bit NAS
10X Faster
AES-CMAC: 68 MB/s Read
AES-128-GMAC: 738 MB/s Read
Test environment: Crystal Disk Mark 1MB throughput
Client: Windows Server 2022 (AMD EPYC 7232P 3.0GHz, DDR4 128GB) with 10GbE NICs
x86 NAS: TS-h1887XU-RP-E2336-32G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 870 EVO 1TB, RAID 50, onboard Aquantia X550 10GbE NIC
ARM NAS: TS-1232PXU-RP-4G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 860PRO 512GB, RAID 5, onboard Annapurna SFP+ 10GbE NIC

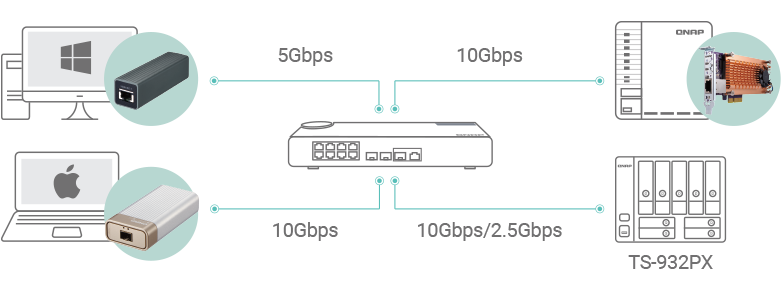

High-speed 10GbE and 2.5GbE connectivity

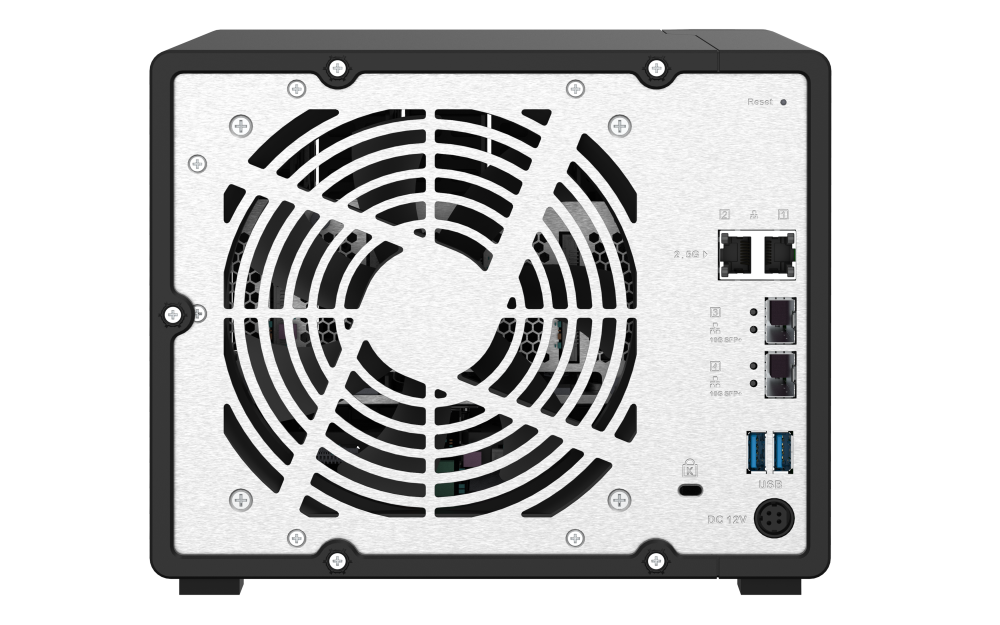

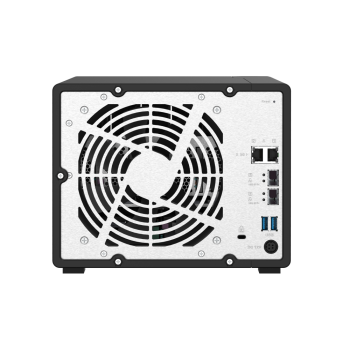

The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
Learn More: 10GbE High-speed Connectivity, 2.5GbE Ethernet, QSW Switches
Boost NAS performance with 2.5-inch SATA SSDs
SSDs can greatly improve NAS performance without requiring a heavy investment. The TS-932PX supports SSD cache technology, Qtier™ auto-tiering, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Learn More: SSD features

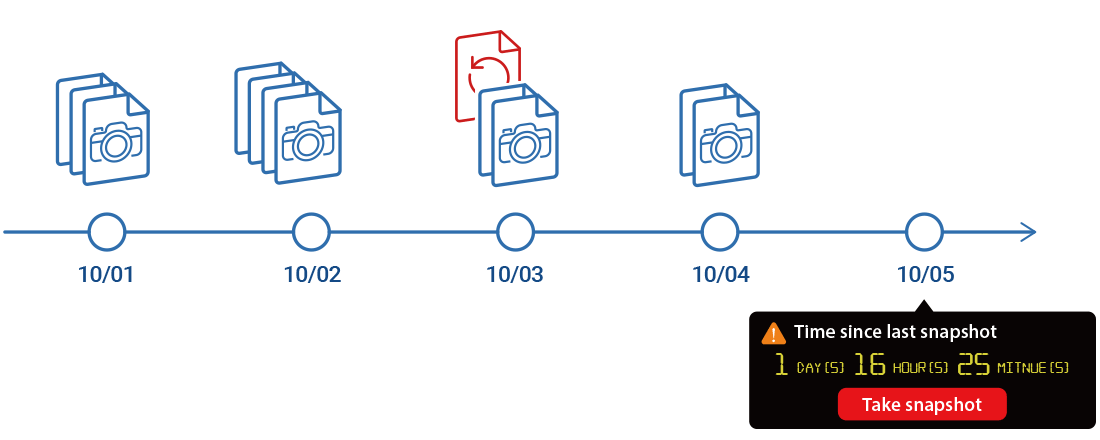

Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.
Learn More: Volume & LUN Snapshots
Multi-Point File Backup, Access, and Sync
The TS-932PX supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-932PX becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-932PX to another QNAP NAS, remote server, or cloud storage (including Microsoft One Drive®, Google Drive™, and Dropbox®) for disaster recovery.

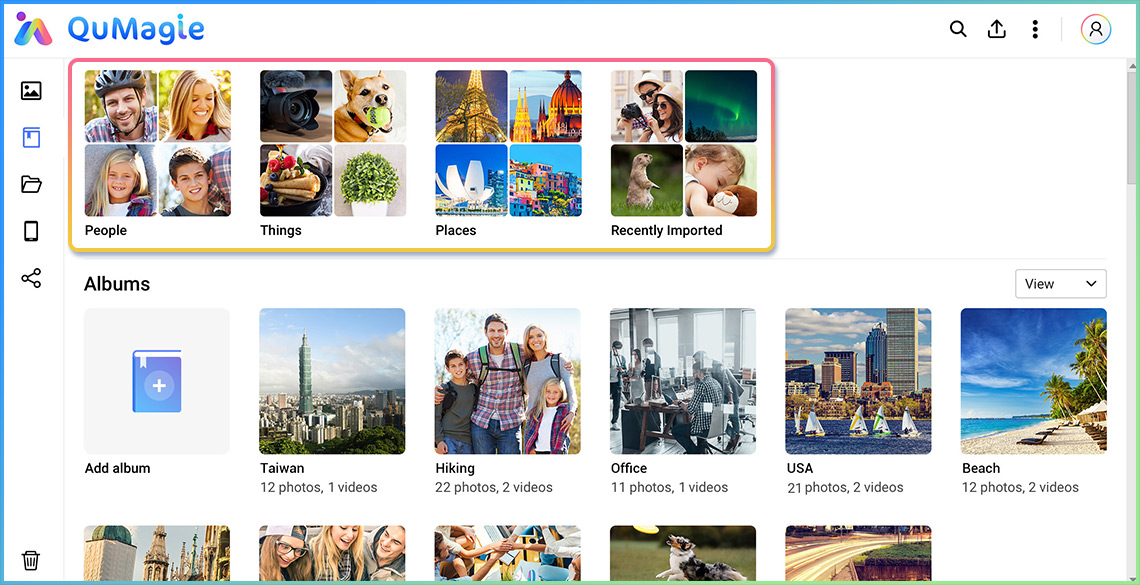

Smart AI Photo Management
QuMagie integrates QuMagie Core AI image recognition technology for facial recognition, subject identification, and geotagging photos. Similar photos are categorized into People, Places, and Things albums. QuMagie also features a built-in timeline scroll, customizable folder covers, iOS® Live Photo display and a powerful search tool, to provide you with the ultimate photo management and image sharing solution.
Learn More: QuMagie
Low-latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-932PX, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Learn More: QNAP Cloud Storage Gateway
HybridMount
File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Learn More: HybridMount
VJBOD Cloud
Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Learn More: VJBOD Cloud
Easily find and automatically organize files
The TS-932PX provides greater convenience for managing files. You can quickly find files using Qsirch and auto-archive them with Qfiling.
File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.
Learn More: Qsirch
Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.
Learn More: Qfiling
Flexible and economical storage expansion
QNAP provides several ways to expand the storage capacity of the TS-932PX to accommodate data growth:
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-932PX.
Learn More: Online RAID Capacity Upgrade
Attach Expansion Enclosures
Connect two expansion enclosures (4-bay TR-004, 2-bay TR-002) or one 8-bay TL-D800C JBOD and use the Storage & Snapshots Manager to handle NAS capacity expansion.
Learn More: RAID Expansion Enclosures
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Learn More: Migrating from an Old NAS
Multiply Your Productivity
QVR Pro
Build a secure surveillance environment without any extra software needed. Provides free embedded channels and you can also purchase QVR Pro licenses to deploy a large-scale surveillance network.
Learn More: QVR Pro
Notification Center
Consolidates all QTS system events, alerts, and notifications for easy NAS management, keeping you always informed of your NAS status.
Learn More: Notification Center
Security Counselor
A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Learn More: Security Counselor
QNAP TS-932PX-4G
9‑Bay Tower NAS • AnnapurnaLabs Alpine AL324 ARM® Cortex‑A57 4‑core 1.7GHz • 4GB DDR4 (up to 16GB) • Dual 2.5GbE + Dual 10GbE SFP+ • Runs QTS 5.2.5
Operating System & Client Support
| Operating System | QTS 5.2.5 |
| Supported Client OS | Apple Mac OS 10.10+, Ubuntu 14.04+, CentOS 7, RHEL 6.6+, SUSE 12+, IBM AIX 7, Solaris 10+, Windows 7/8/10/11 |
| Supported Browsers | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox (latest versions) |
| Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
Storage Management
| Storage Pool | SED supported; Max size: 308 TB; Max pools: 128 |
| Volume | Thick, Thin, Static; Max size: 250 TB; Max volumes: 128; Max shared folders: 512 |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 (depending on bays); Max 16 drives per RAID group |
| Snapshots | Volume & LUN snapshots; Min interval: 5 min; Snapshot replica/vault supported |
| SSD Cache | Read, Write, Read‑Write; Max size depends on model/RAM; RAID 0/1/5/6/10 |
| File System | Internal: EXT4; External: EXT3/EXT4/NTFS/FAT32/HFS+/exFAT* |
| Notes | *exFAT driver license required for ARM models |
Network & File Services
- Protocols: SMB/CIFS, AFP, NFS v3/v4, FTP/FTPS/SFTP/TFTP, WebDAV
- Max FTP connections: 1024
- Users: 4,096 local, 200,000 domain
- Groups: 512 local
- Windows ACL & Advanced Folder Permissions
- User/Group/Folder quotas, Home folders
- Recycle Bin for SMB/AFP/File Station
- SNMP v2/v3, Syslog (3,000 events/s)
Virtualization & Backup
- VMware vSphere VAAI (iSCSI & NAS), Windows ODX
- Hybrid Backup Sync (NAS, Cloud, Time Machine, External) — up to 400 jobs
- Qsync (Windows/macOS/Linux/Android/iOS), max 64 versions
- HybridMount (Cloud/File Gateway) — 2 free sessions, 20 up/20 down connections
- Boxafe: O365 & Google Workspace backup
- Qsirch: Full‑text search, advanced filters, AI photo search
Apps & Services
- Multimedia: Photo Station, Music Station, Video Station, QuMagie (AI photos)
- Download Station, Notes Station, Qfiling, QmailAgent
- Container Station (Docker, LXC/LXD), Virtualization Station
- QVR Pro (8 free channels), QVR Elite (2 free channels)
- QVPN Service: PPTP, L2TP/IPSec, OpenVPN, QBelt (100 clients max)
- Security: AES 256‑bit encryption (FIPS 140‑2), 2FA, Firewall, Malware Remover
- Networking: VLAN, Port Trunking (7 modes), DHCP, DDNS, Virtual Switch
