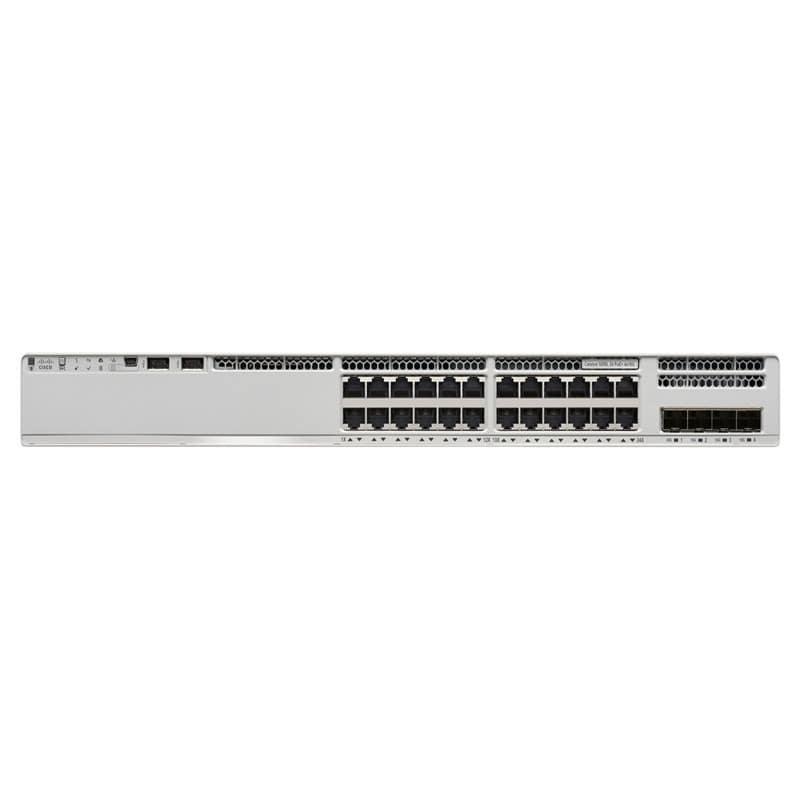

Cisco 9200 L-24P-4G Switch L3
Cisco 9200 L 24 ports full PoE+ 4x1G uplink Switch rack-mountable with Network Essentials software, Cisco 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments
Cisco 9200L-24P-4G switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise.
This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch.
Cisco 9200L provides resiliency that keeps your business up and running seamlessly.
The C9200L-24P-4G-A model has 24 ports 1G PoE+ with 4x 10G SFP+ fixed uplinks. Licensing is required.
Cisco 9200 Specification
Cisco 9200L – Network Advantage – switch – 24 ports – rack-mountable
Cisco 9200L Device Type : Switch – 24 ports – L3 – stackable
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Cisco 9200L Ports : 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) : PoE+
PoE Budget : 740 W
Cisco 9200L Performance
Stacking bandwidth: 80 Gbps ¦Cisco 9200L Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Cisco 9200L Capacity : Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size : 16000 entries
Jumbo Frame Support : 9198 bytes
Cisco 9200L Routing Protocol : OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol : SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Cisco 9200L Features : Quality of Service (QoS), Cisco 9200L Stack Wise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Net Flow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible Net Flow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MAC sec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Cisco 9200L Power : AC 120/230 V (50 – 60 Hz)
Power Redundancy : Optional
Dimensions (WxDxH) : 44.5 cm x 4.4 cm x 28.8 cm
Cisco 9200L Weight : 4.35 kg
