POE-GSH2422-300 AT: 28-port Gigabit POE+ Switch, 802.3af/at, 300W

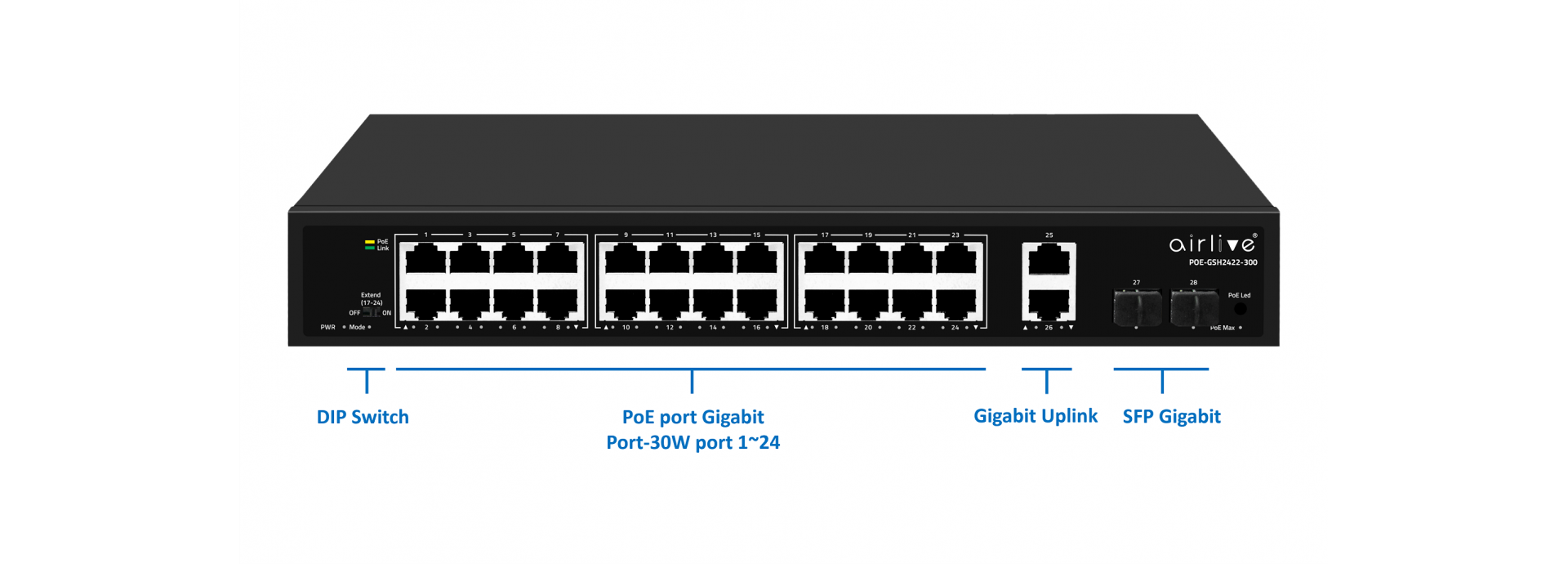

The AirLive POE-GSH2422-300 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W) It supports 24 Gigabit PoE ports and 4 uplink ports including 2x 1G RJ45 and 2x 1G SPF Fiber. Total of PoE power budget is 285W. The AirLive POE-GSH2422-300 switch is a plug and play unmanaged PoE switch with PoE Priority and 250meter cabling extension, which can be easily set up via its DIP switch. The four Gigabit Uplink ports (2x SFP and 2x RJ-45) help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office. Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at).

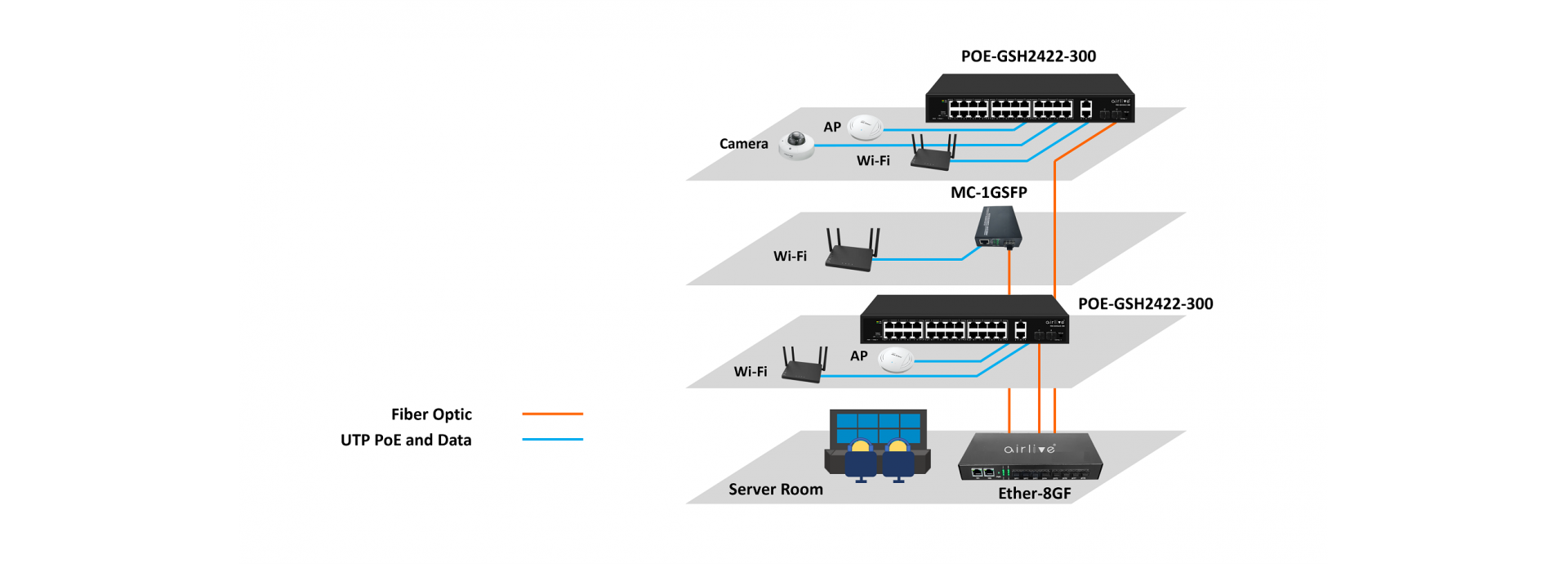

Extend the network further with SFP slot. Use the POE-GSH2422-300 fiber port to connect different floors together in a large building or to the main office over a longer distance. Depending on the module used it can reach up to 20KM in distance with 1250Mbps data transmission rate.

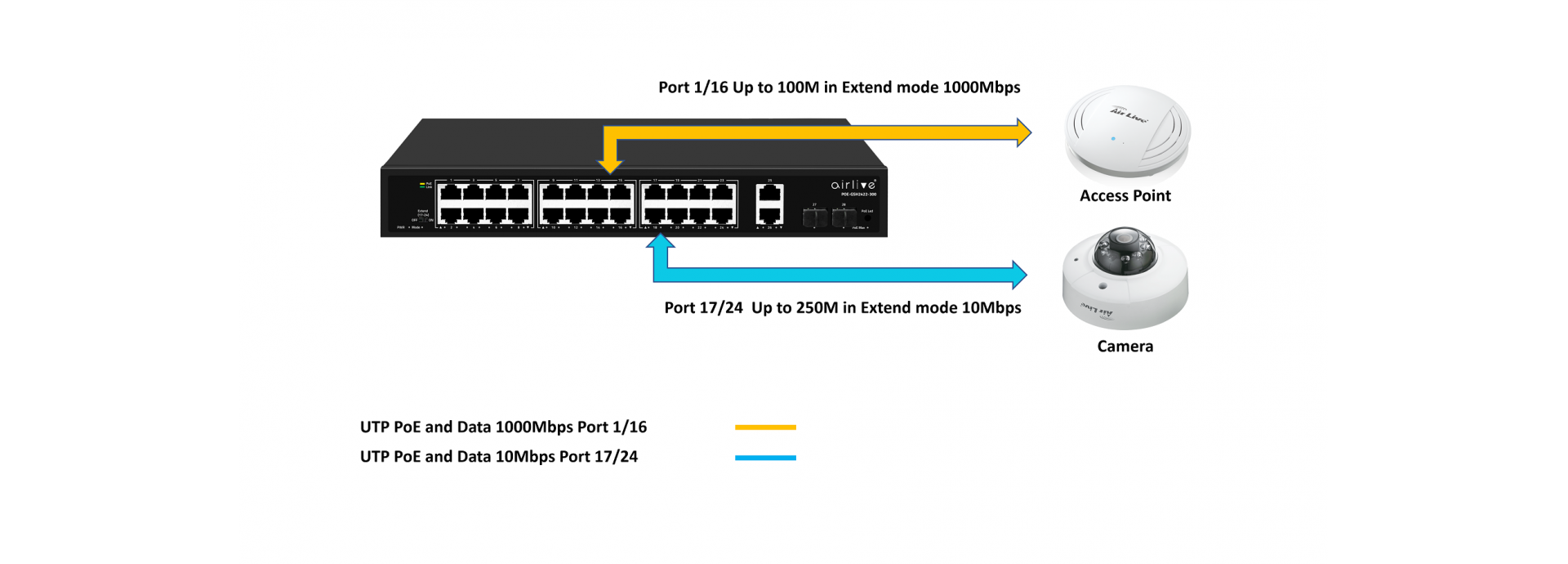

Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at). The POE-GSH2422-300 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 17 and 24 on the switch and when enabled the transmission rate will be 10Mbps. PoE Watchdog is also enabled when Extend mode is on.
