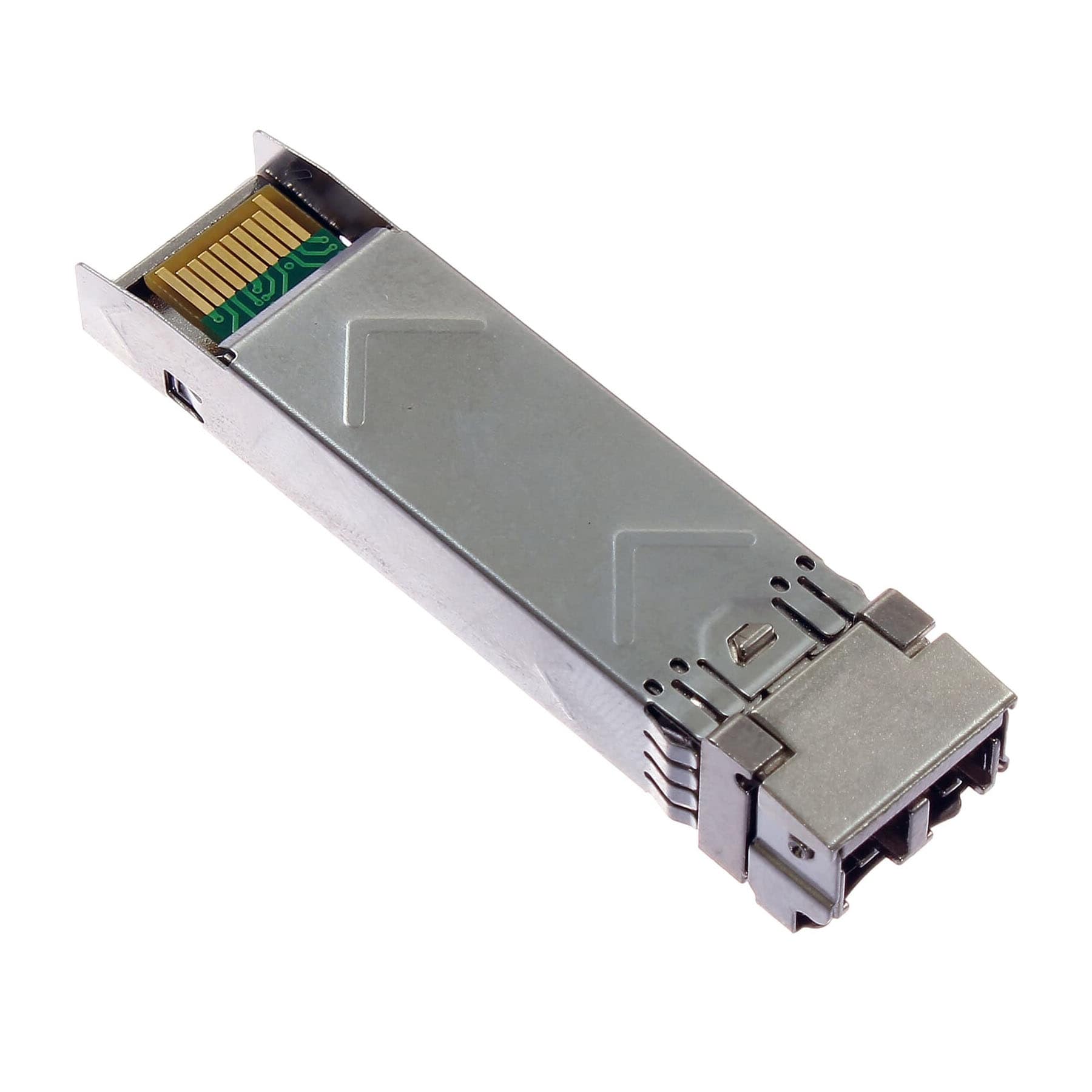

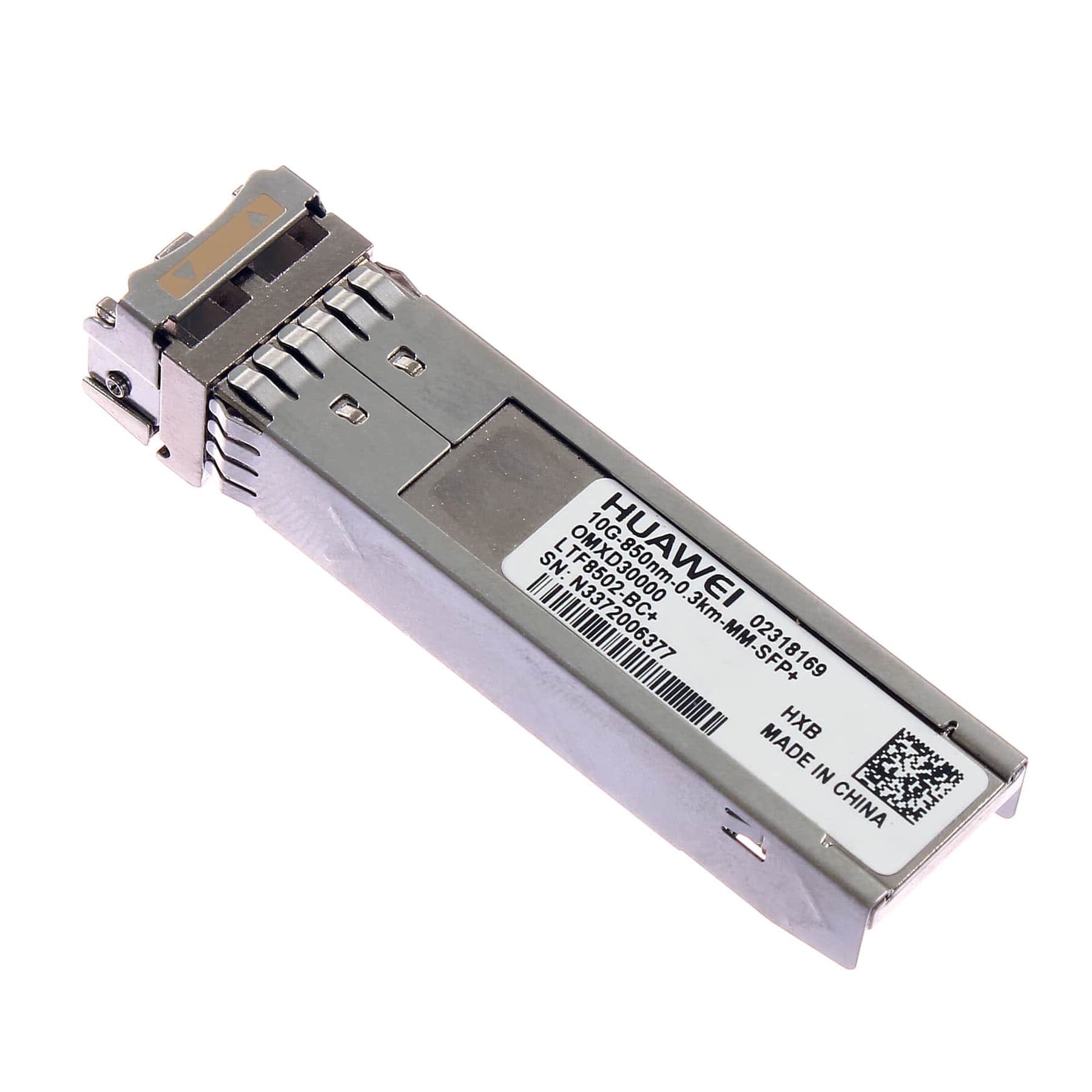

Huawei eKit Optical Transceiver SFP+
| Basic Information | |
| Part Number | 02313URC |
| Model | OMXD30000 |
| Description | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
| Level-1 category | 10GE SFP+ Optical Modules |
| Module name | OMXD30000 |
| Technical Specifications | |
| Connector type | LC/DLC |
| Optical fiber type | MMF |
| Form factor | SFP+ |
| Transmission rate [bit/s] | 10G |
| Target transmission distance [km] | Multimode fiber (with diameter of 62.5 μm): 26 m |
| Multimode fiber (OM1) (with diameter of 62.5 μm): 33 m | |
| Multimode fiber (with diameter of 50 μm): 66 m | |
| Multimode fiber (OM2) (with diameter of 50 μm): 82 m | |
| Multimode fiber (OM3) (with diameter of 50 μm): 300 m | |
| Multimode fiber (OM4) (with diameter of 50 μm): 400 m | |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| DDM options | Supported |
| Modal bandwidth [MHz*km] | Multimode fiber: 160 MHz*km |
| Multimode fiber (OM1): 200 MHz*km | |
| Multimode fiber: 400 MHz*km | |
| Multimode fiber (OM2): 500 MHz*km | |
| Multimode fiber (OM3): 2000 MHz*km | |
| Multimode fiber (OM4): 4700 MHz*km | |
| Center wavelength [nm] | 850 |
| Overload power (AVG) [dbm] | -1 |
| Minimum Tx optical power (AVG) [dbm] | -7.3 |
| Maximum Tx optical power (AVG) [dbm] | -1 |
| Minimum extinction ratio [db] | 3 |
| Rx sensitivity (OMA) [dbm] | -11.1 |
