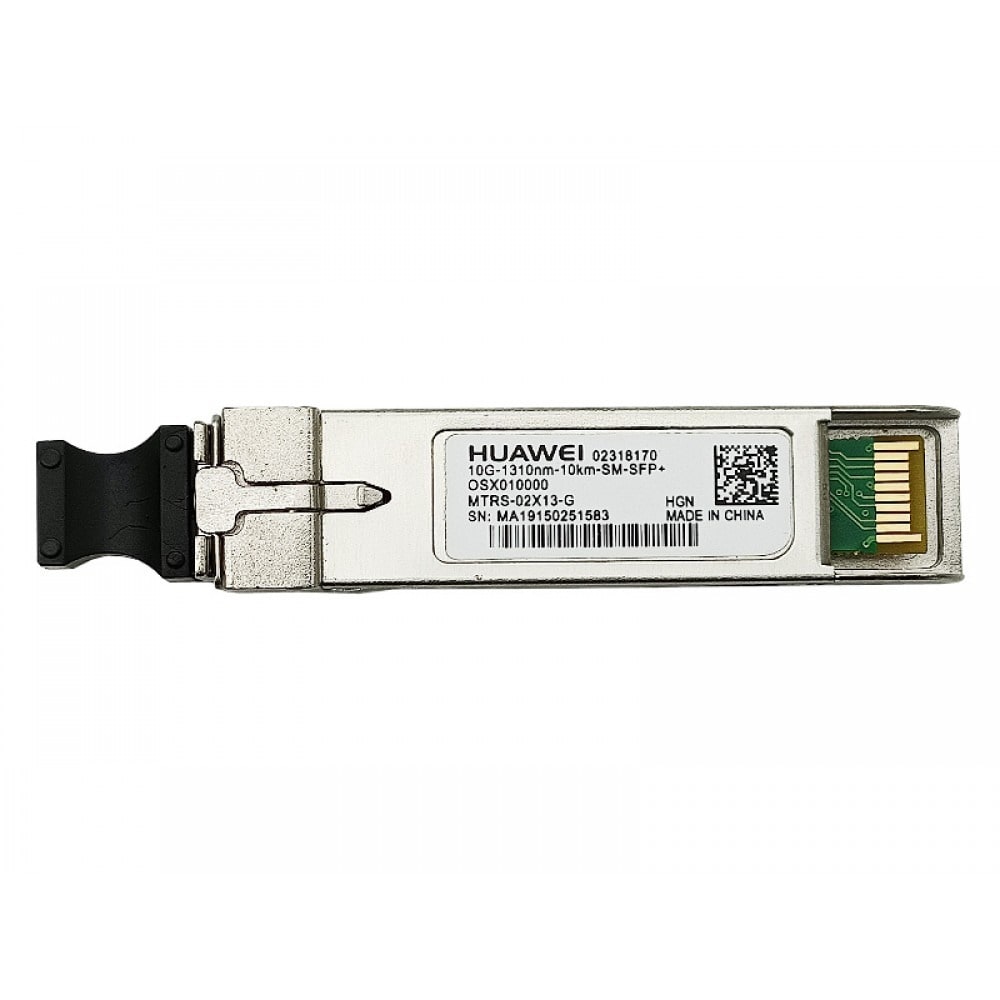

Huawei eKit Optical Transceiver SFP+
| Basic Information | |
| Part Number | 02313URK |
| Model | OSX010000 |
| Description | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
| Level-1 category | 10GE SFP+ Optical Modules |
| Module name | OSX010000 |
| Technical Specifications | |
| Connector type | LC/DLC |
| Optical fiber type | SMF |
| Form factor | SFP+ |
| Transmission rate [bit/s] | 10G |
| Target transmission distance [km] | Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| DDM options | Supported |
| Center wavelength [nm] | 1310 |
| Overload power (AVG) [dbm] | 0.5 |
| Minimum Tx optical power (AVG) [dbm] | -8.2 |
| Maximum Tx optical power (AVG) [dbm] | 0.5 |
| Minimum extinction ratio [db] | 3.5 |
| Rx sensitivity (OMA) [dbm] | -12.6 |
