Home›Networking & Servers›Network Switches›AirLive POE-2TX801-150 AT: 9-port Multi-Gigabit POE+ Switch, 802.3af/at, 150W
POE-2TX801-150
Hot
Add your review

AirLive POE-2TX801-150 AT: 9-port Multi-Gigabit POE+ Switch, 802.3af/at, 150W

POE-2TX801-150 AT: 9-port Multi-Gigabit POE+ Switch, 802.3af/at, 150W

No independent power supply system required

High Speed 2.5G RJ-45 and 10G SFP+ Connections

Two-in-one network and power cable

Shortened construction period

Reduced costs of power and network deployment

PoE power, supports 802.3af/802.3at PoE+

0,00 EGP 14% inc VAT

Sold by EG-tech

📱 Contact via WhatsApp

📞
✓ Your number saved
Buy Now
Availability: In Stock
SKU:POE-2TX801-150
Categories:

Painless Upgrading to 802.3af/af PoE 2.5Gbps & SFP+ 10G Super High speed

The AirLive Multi-Giga switch POE-2TX801-150 is compliant with 802.3af(15W)/802.3at(30W) it supports 8x PoE 2.5G RJ45 ports, Port 1 is HiPoE 60W Port 2 to 8 are max 30W PoE and 1x 10G SFP+ port for delivering high-speed connections on RJ-45 and SFP+. With the 2.5G multi-Giga switch, you can connect to a variety of 2.5GbE-enabled devices, such as NAS | NVR | PC | Server | Laptop, for enjoying faster experience and handle bandwidth-hungry applications. . The total PoE power is 135W which can power on several PoE devices like Access Points and IP Cameras. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.

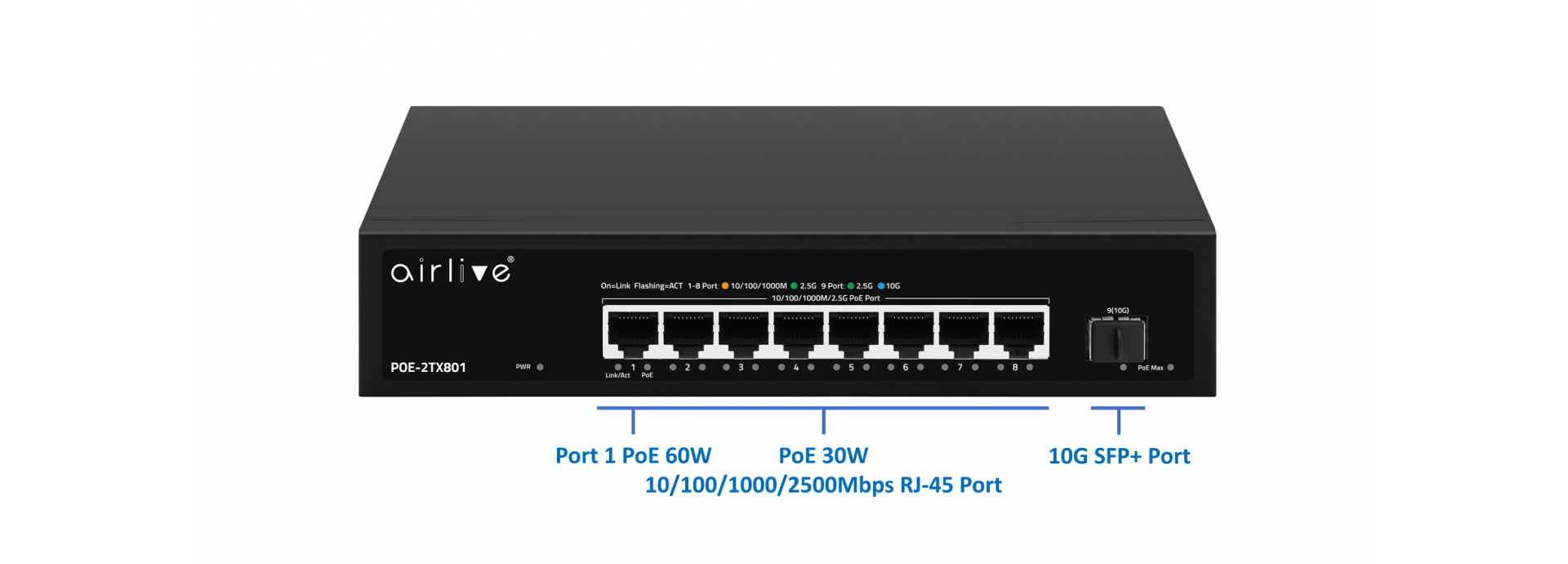

AirLive Multi-Giga switch POE-2TX801-150

AirLive Multi-Giga switch POE-2TX801-150

Features
  • All 9-port, each port delivers Multi Gigabit high speed
  • 8 x 10/100/1000/2500M RJ45 PoE
  • Port 1 up to 60W HiPoE, Port 2~8 up to 30W PoE
  • 1 x UpLink Port 10G SFP+
  • PoE Priority
  • Extend the network further with 1 SFP+ slot that accept fiber transceivers and go beyond the limits of Ethernet
  • PoE power, supports 802.3af/802.3at PoE+
Features
  • Max. 135W PoE Power
  • Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
  • Existing Cat5e cable suitable, painless upgrading
  • Plug and Play, Zero configuration
  • Compact size for Home or SMB Network Connectivity

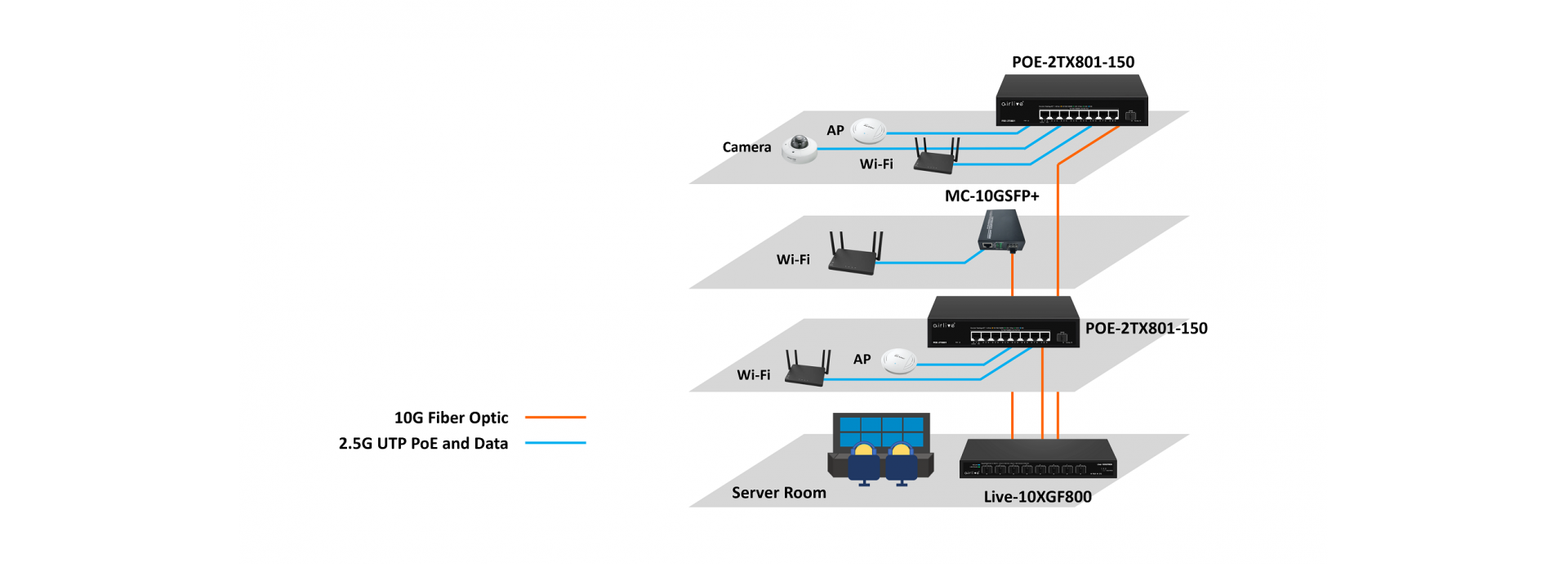

PoE at High Speed and PoE Priority

Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 60W (at) for Port 1 and max up to 30W (at) for port 2~8. With the 2.5G RJ45 ports and 10G SFP+ Uplink port bandwidth would not be an issue. PoE Priority is supported for the PoE Power from port 1~8, this can be helpful for a IPCAM or high priority preferred device. This function is turned on by default.
PoE at High Speed and PoE Priority

PoE at High Speed and PoE Priority

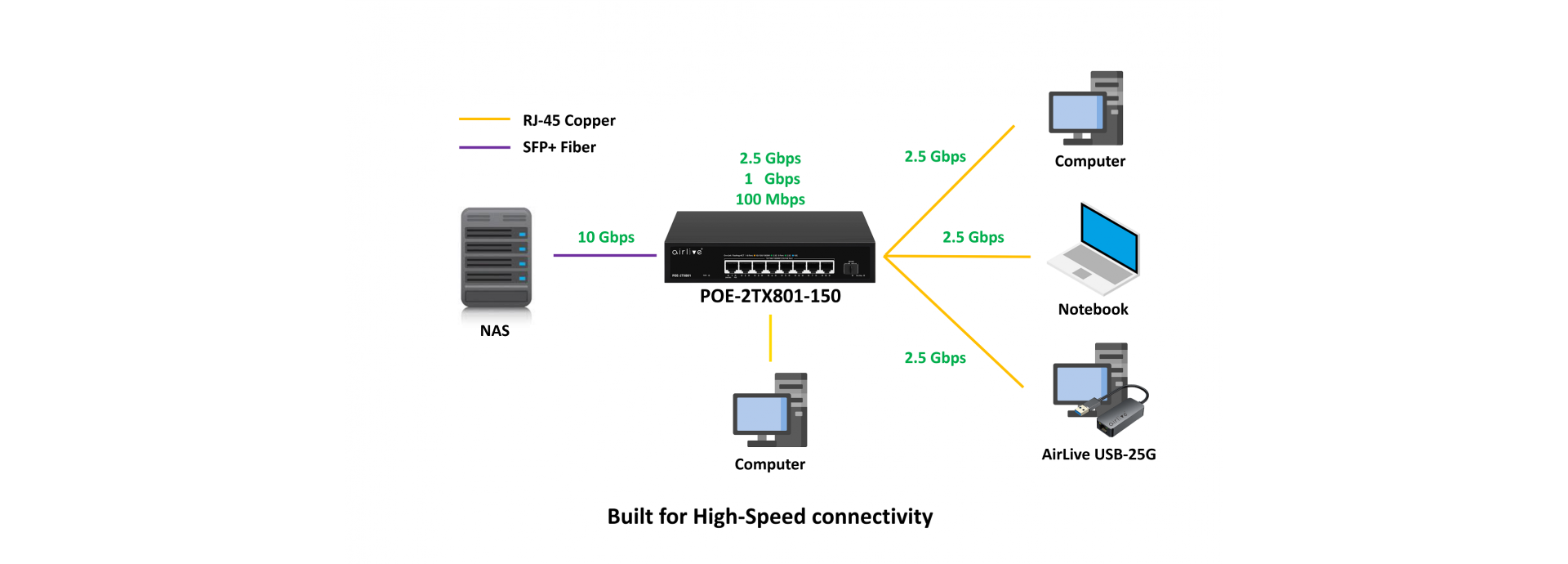

Multi Gigabit for Interconnect

With the AirLive POE-2TX801-150 2.5Gbps switch, it is possible to connect several high-speed devices together via RJ-45 connections using a normal Cat.5e network cable. Higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed when doing backup to a NAS drive. Use the 10G SPF+ as uplink to a larger network with higher speed.
Multi Gigabit for Interconnect

Multi Gigabit for Interconnect

Show More

AirLive POE-2TX801-150 Spec Sheet

AirLive POE-2TX801-150 Spec Sheet Download
Hardware
ModelPOE-2TX801-150
Device Interface8 x 10/100/1000/2500Mbps RJ45 (Port1 60W, Port 2~8 30W) 1 x 10G SFP+
StandardsIEEE802.3u 100Base-TX IEEE802.3ab Gigabit 1000Base-T IEEE802.3bz 2.5GBase-T IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae 10G Ethernet (optical fiber) IEEE802.3x Flow Control IEEE802.3af/at PoE
LED IndicatorsPWR(Power indicator), Link RJ-45 port: Green 2.5G, Yellow 100/1000Mbps, PoE LED Yellow (On/Off), Link SFP+ port: Blue 10G, Green 1/2.5G PoE Max Green LED: Off: indicates PoE power usage is less than 90% Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% On: indicates that PoE power is used at 95%
MechanicalSolid Metal Housing, Desktop
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port8
PoE Power Output / PoE Portmax. 60W (port 1)
PoE Power Output / PoE Portmax. 30W (port 2~8)
PoE Power Output / PoE switch135W PoE Usage, 11.29W Switch Usage
Surge and ESD protection
Surge and ESD protectionPort Surge: Common mode 4KV, Differential mode 2KV  (Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 50/125 ,  62.5/125 , 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125、10/125um
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 60Gbps Packet Forwarding Rate: 44.65Mpps MAC Address: 4K Jumbo Frame: 9216bytes Transfer mode: Store and forward MTBF:100000 hour
Power Supply
Input VoltageAC100~240V
Power Supply52V/2.88A (150W) Internal.
Environment
Operating Temperature0°C to +40°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing


Ordering Information

ModelPOE-2TX801-100: 8 x PoE 10/100/1000/2500M RJ45 + 1 x 10G SFP+  Uplink, 150W
Standard Package
Product Size22.0(L) x 16.1(W) x 4.4(H) cm
Package Size31.5(L) x 21.5(W) x 8.5(H) cm
Package WeightN.W: 0.916kg G.W: 1.23kg
Package Content1 x Switch, 1 x Power cord
Carton Package
Quantity10 PCS / 1 Carton
Dimensions44.5(L) x 44.5(W) x 33.5(H) cm
Weight13.3kg
