ProLink CAT6 Patch cord, 0.25m, LSZH, Green

Description

Product: PROLINK CAT6 UNSHIELDED PATCH CORD
Length: 0.25M
Color: Green
Wiring: T568B
Jacket Type: LSZH (Low Smoke Zero Halogen)

PROLINK Cat.6 patch cords are used for connecting network equipment to patch panels and telecommunications outlets. Suitable for frequencies up to 250 MHz.

Features

• Compliant with ISO/IEC 11801 Category 6, Class E (250 MHz)
• Individually tested and quality stamped
• Backward compatible with Cat5e
• Strain reliefs with wide functionality and labeling options
• Available lengths: 0.25M, 0.5M, 1M, 3M, 5M, 10M
• Impedance: 100 Ohms
• LSZH jacket
• Available colors: Blue, White, Gray, Yellow, Black, Orange, Green, Turquoise

Material Specifications

• Plug Housing: Polycarbonate
• Contacts: Phosphor Bronze (CuSn6)
• Contact Plating: 0.7 μm selective gold
• Shielding: Tin-plated brass

Electrical Characteristics

• Current Rating: 1.5A (max @ 25ºC)
• Voltage Rating: 150 VAC (max)
• Dielectric Withstanding Voltage: 1000 VAC, 1 min (60 Hz)
• Insulation Resistance: ≥ 250 MΩ

Mechanical & Environmental Characteristics

• Compliance: IEC 60603-7
• Operating Temperature: -10°C to -60°C

Patch Cord Characteristics

• Category: CAT.6
• Type: U/UTP
• Conductor Diameter: AWG23/7
• Number of Pairs: 4
• Inner/Outer Screen: None
• Jacket Material: LSZH
• Outer Diameter: Max 6.0 mm

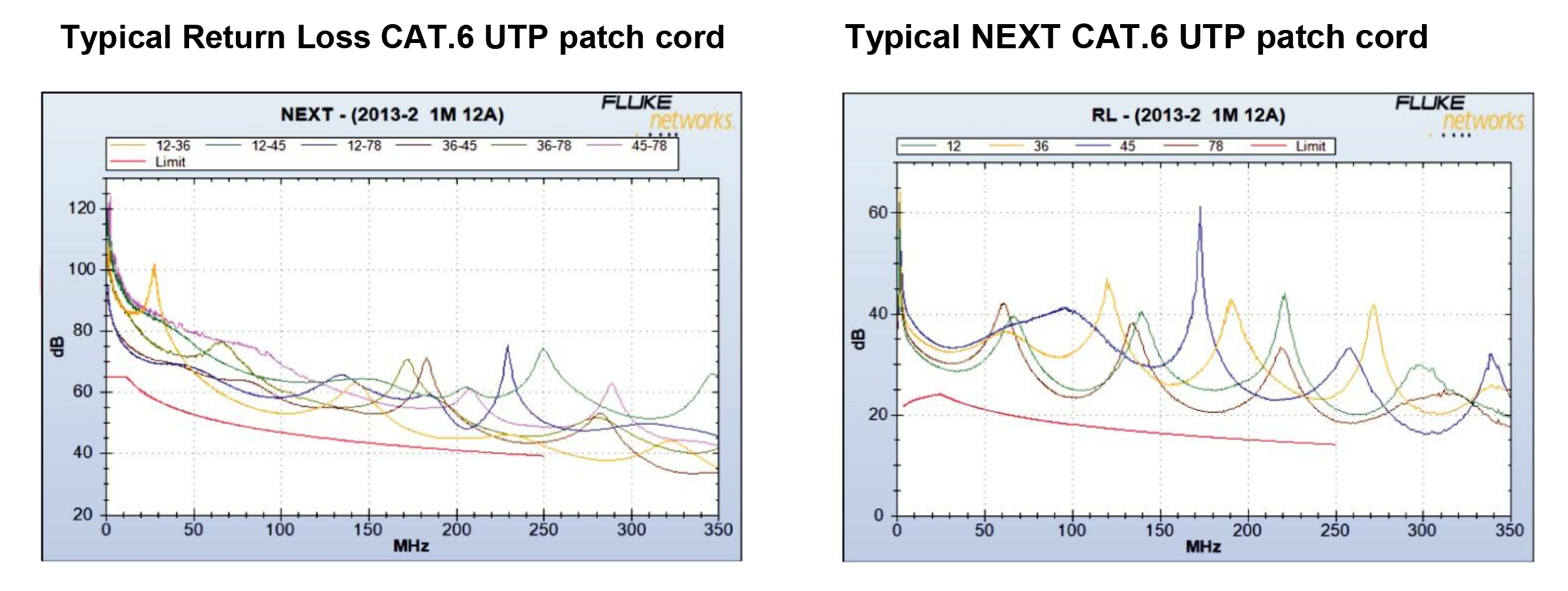

• Typical Return Loss: Conforms to CAT.6
• Typical NEXT: Conforms to CAT.6
