Huawei eKitEngine S310s Series Switches
Huawei eKitEngine S310S series switches are fully-managed 10GE switches designed for the SME and SMB market. These switches provide many features, such as These switches feature flexible Ethernet networking, diversified security control, rich management methods, higher performance, and extended service processing capabilities. Therefore, they can be widely used in scenarios such as economic hotels, factories, primary and secondary education, and building security.
- Product Features and Highlights
- Flexible Ethernet Networking
- Diversified Security Control
- PoE Power Supply
- Smart Upgrade
- Cloud Management
- Easy O&M
| Specification | Details |
|---|---|

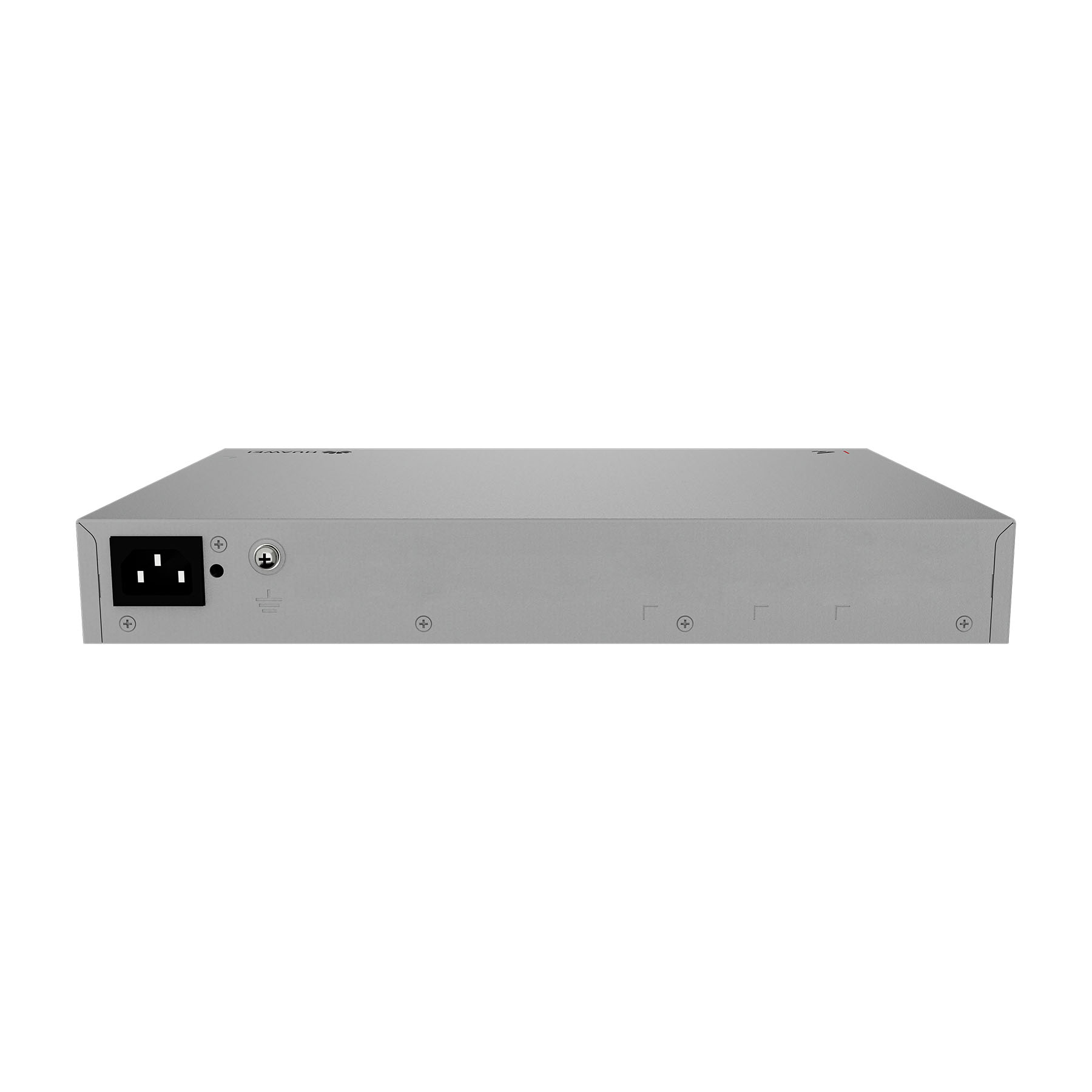

| Model | S310S-8P4JX |
| Device Type | L3 Managed Ethernet Switch with PoE+ |
| Downlink Ports | 8 × 10/100/1000BASE-T (RJ45), PoE+ supported |
| Uplink Ports | 2 × 2.5GE SFP ports + 2 × 10GE SFP+ ports |
| PoE Standard | IEEE 802.3af / 802.3at (PoE/PoE+) |
| PoE Power Budget | 130W (default), can reach up to 400W with full PoE load |
| Switching Capacity | 88 Gbps |
| Forwarding Performance | 66 Mpps |
| MAC Address Table Size | 16K entries |
| Memory (RAM) | DDR4, 512 MB |
| Flash Memory | NAND flash, 256 MB |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 220 mm (1.72 in × 17.40 in × 8.66 in) |
| Max Dimensions (Depth incl. ports) | 43.6 mm × 442 mm × 227 mm (1.72 in × 17.40 in × 8.94 in) |
| Weight (without packaging) | 2.81 kg (6.2 lb) |
| Weight (with packaging) | 3.72 kg (8.2 lb) |
| Chassis Height | 1U |
| Chassis Material | Metal |
| Power Supply | Built-in AC |
| Rated Input Voltage | AC: 100V – 240V, 50/60Hz DC: 240V |
| Input Voltage Range | AC: 90V – 290V, 45Hz – 65Hz DC: 190V – 290V |
| Max Input Current | 6A |
| Typical Power Consumption | 34.14W |
| Max Power Consumption (PoE Full Load) | 484.27W (includes 400W for PoE load) |
| Heat Dissipation (Typical) | 116.48 BTU/hour |
| Heat Dissipation (Max PoE Load) | 1652.38 BTU/hour |
| Static Power Consumption | 19.56W |
| MTBF (Mean Time Between Failures) | 48.67 years |
| Availability | > 0.99999 |
| Operating Temperature | -5°C to +45°C (23°F to 113°F), up to 1800m altitude |
| Temperature Derating | Above 1800m, reduce max temp by 1°C per 220m increase (up to 5000m) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Operating Altitude | 0 to 5000m (0 to 16404 ft.) |
| Ingress Protection | IP20 |
| Surge Protection (Ports) | ±7 kV Common Mode |
| Surge Protection (Power Supply) | ±6 kV Differential / ±6 kV Common Mode |
| Cooling Method | Intelligent fan speed adjustment, air cooling |
| Airflow Direction | Intake: Left & Front Exhaust: Right |
| Fan Modules | 2 (built-in) |
| Redundant Power Supply (RPS) | Not supported |
| Console Port | Not supported |
| Management Port | Not supported |
| USB Port | Not supported |
| Real Time Clock (RTC) | Not supported |
| PoE Support | Supported |
| Certifications | EMC, Safety, Manufacturing certifications |
