| Hardware |
| Model | AirLive WEB-2TX2402 |

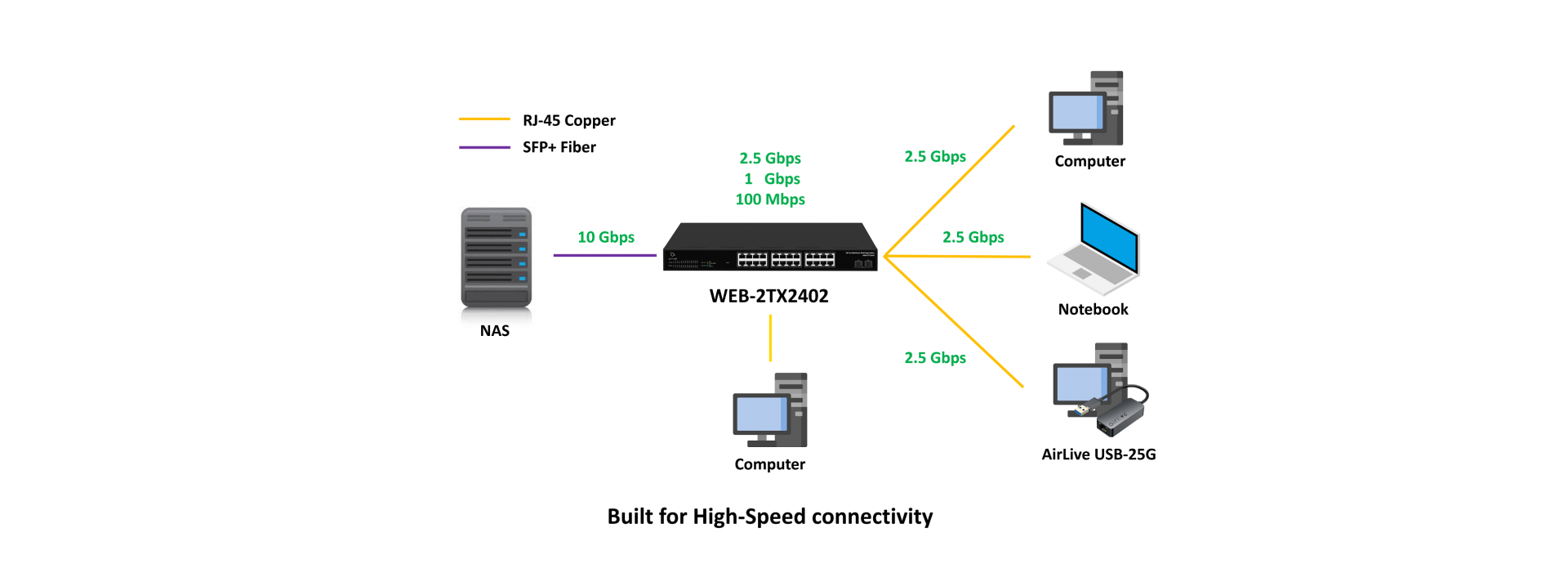

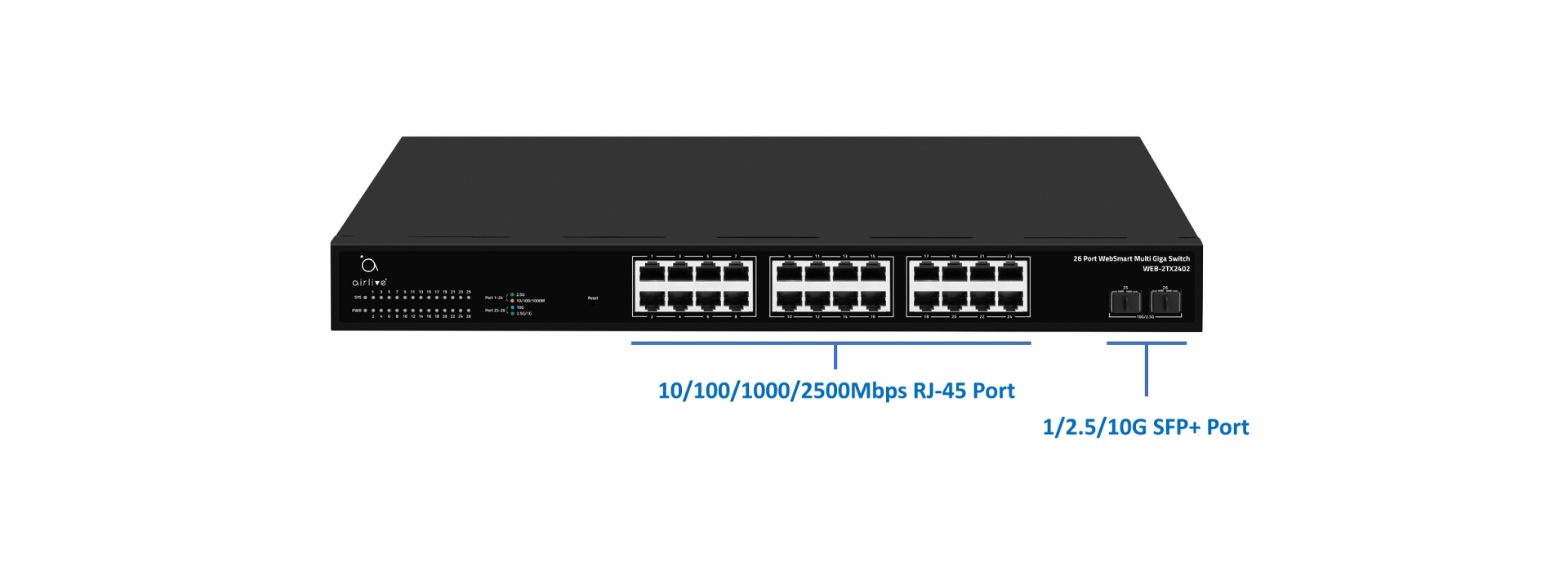

| Device Interface | 24 x 10/100/1000/2500 RJ45
2 x 1.25G/2.5/10G SFP +
26-port totally |
| Standards | IEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5GBase-T
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3az (Efficient and Energy saving Ethernet) |
| Industry standard compliant | EMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge) |
| Lightning Surge / ESD Protection | Support Surge Protection: Common Mode 6KV, Differential Mode 2KV(Class C), Electrostatic ESD 8KV Air, 6KV Contact(Class C) |
| LED Indicators | PWR (power supply), Link/Act (Indicator), RJ45 2.5G (Indicator), SFP+ 10G (Indicator) |
| Mechanical | Solid Metal Housing |
| Switch Architecture | Performance |
| Switching architecture: Store and Forward | Bandwidth: 160Gbps
Packet Forward Rate: 119.04Mpps
Memory Cache: 12Mbit
MAC Address: 16K
VLAN: VLAN range 1-4094, with a maximum active VLAN of 31
Transfer mode: Store and forward
MTBF:100000 hour |
| Transmission Distance | 10Base-T: Cat3,4,5 UTP(≤100 meter)
100Base-TX: Cat5 or later UTP(100 meter)
1000Base-TX: Cat5e or later UTP(100 meter)
2500Base-TX: Cat5e or later UTP(100 meter) |
| Fiber Medium | 1000BASE-SX: 62.5μm MMF (Multimode optical fiber) (Minimum range: 2m～275m) or 50μm MMF
1000BASE-LX: 62.5μm/50μm MMF (Minimum range: 2m～550m) or 10μm SMF (Minimum range: 2m～5km)
2500BASE-X: G.652D SMF (Single-mode optical fiber) (Minimum range: 2m～500m or 2m～5Km)
10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m～300m)
10GBASE-LR: IEC and B1.1 and B1.3 SMF (Minimum range: 2m～10km) |
| Web Management Software Function L2 |
| Port Setting | Port Switch Configuration
Port Description Configuration
Port Duplex Configuration
Port Flow Control Configuration
Jumbo Frame up to 16356bytes
EEE |
| Link Aggregation | Support load sharing strategy based on MAC and IP-MAC addresses
Static and Dynamic aggregation groups
Support LACP
Max. 8 members per group |
| Storm Control | Broadcast
Unknown Multicast
Unknown Unicast |
| Port Mirroring | One to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups |
| Port Security | MAC Address Constraints
Protect/Restrict/Shutdown |
| Port Isolation | Supported |
| Port Rate-limit | Bandwidth Control |

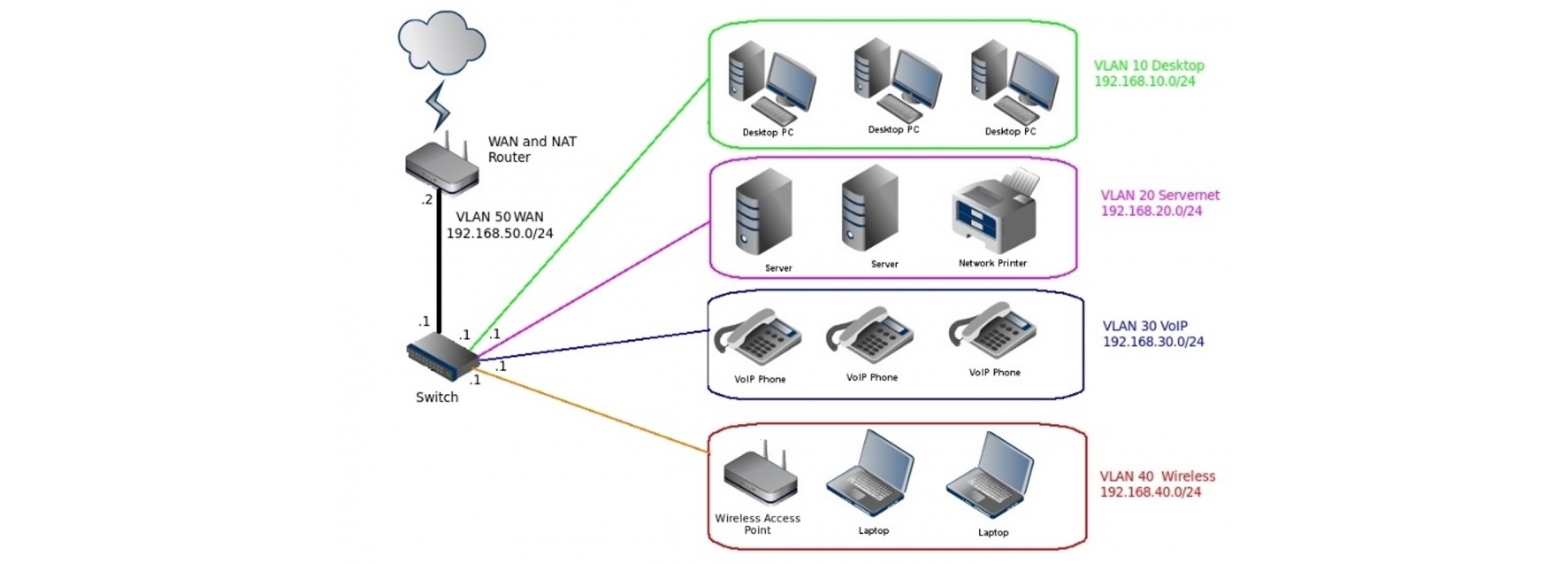

| VLAN | Access/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
VLAN range 1-4094
Maximum active VLAN is 31 |
| MAC Address | Static MAC address
MAC Address Filtering |
| Spanning Tree Protocol | STP/RSTP
BPDU Filter
BPDU Guard
Edge Port |
| ERPS | Supported |

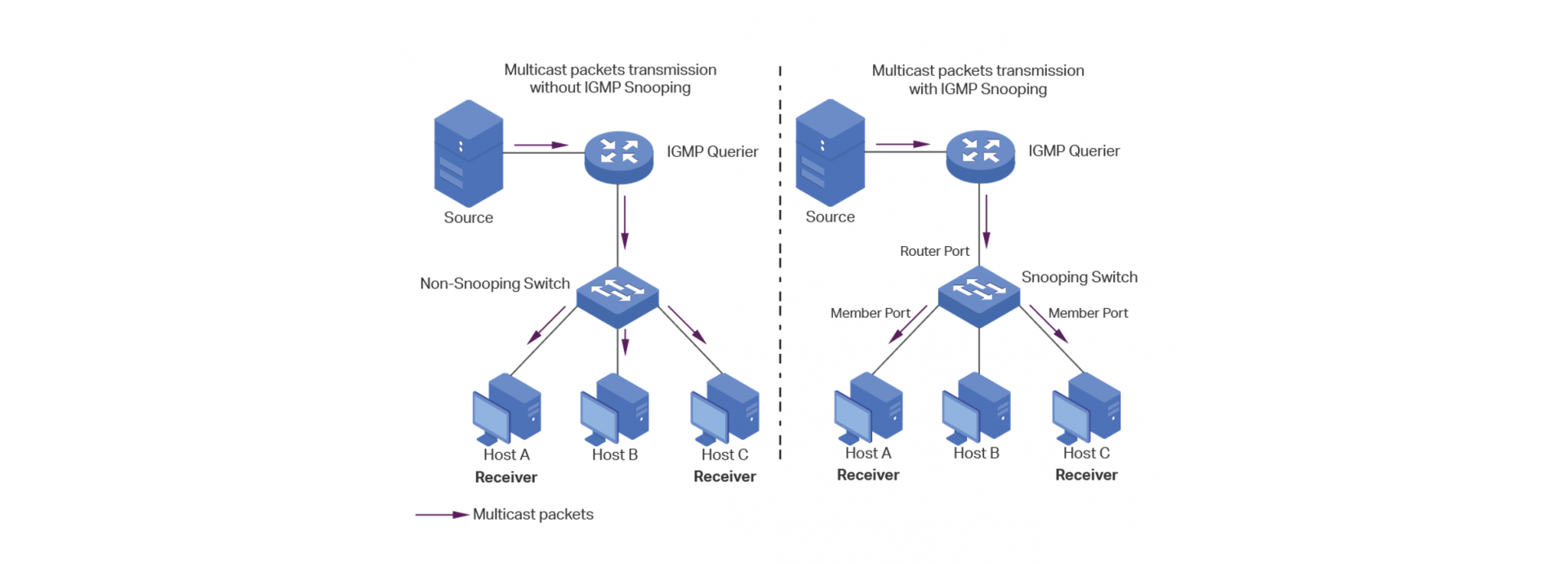

| Multicast | IGMP Snooping
IGMP V1/V2/V3
Router Port
Static Multicast |
| QoS | Traffic classification based
Strict priority and WRR
Port Priority
802.1P Priority
IP DSCP Priority
Supports up to 8 queues per port
Priority Remark |
| Loopback Detection | Supported |
| Services | Supported |
| Security | Supported |
| DHCP Snooping | Supported |
| Diagnostics | Supported |
| Ping | Supported |
| Electrical Port Test | Supported |
| Management |
| Manager Access | HTTP, SNMP |
| Manager IP | Static Address
DHCP Client
Manager VLAN
DNS |
| SNMP | V1/V2C
Community Name
Trap host |
| SNMP MIB | RFC 1213 MIB-II
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB |
| User | |
| Firmware | Firmware Upgradable |
| Configuration | Upload and Download |
| Save, Restart, Factory Defaults | |
| Power |
| Power Input | AC 100~240V |
| Power Usage Max | 36W |
| Environment |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
