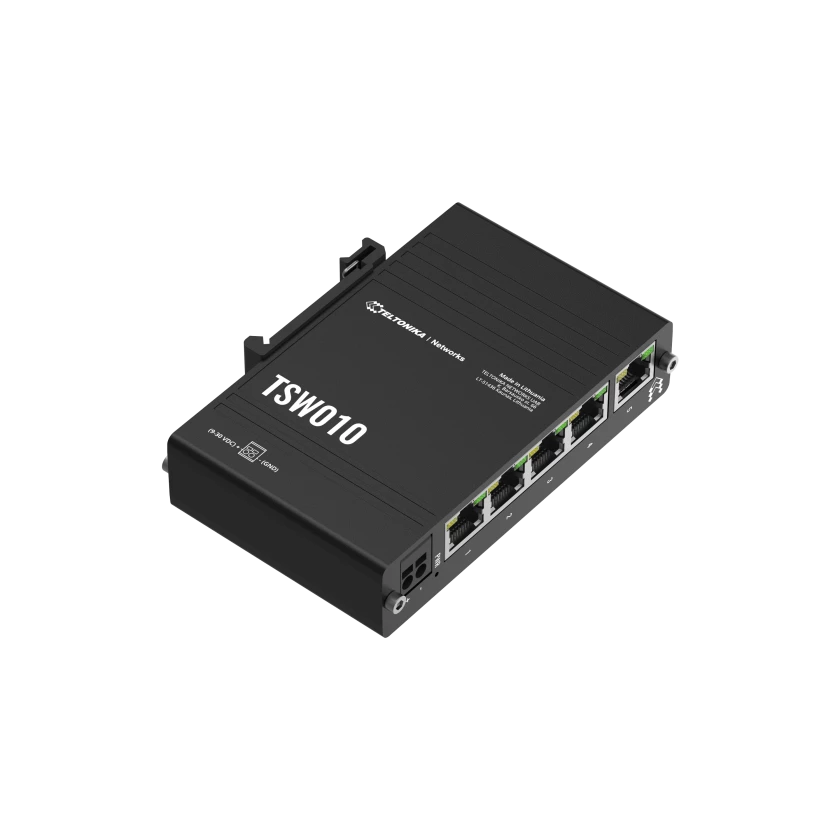

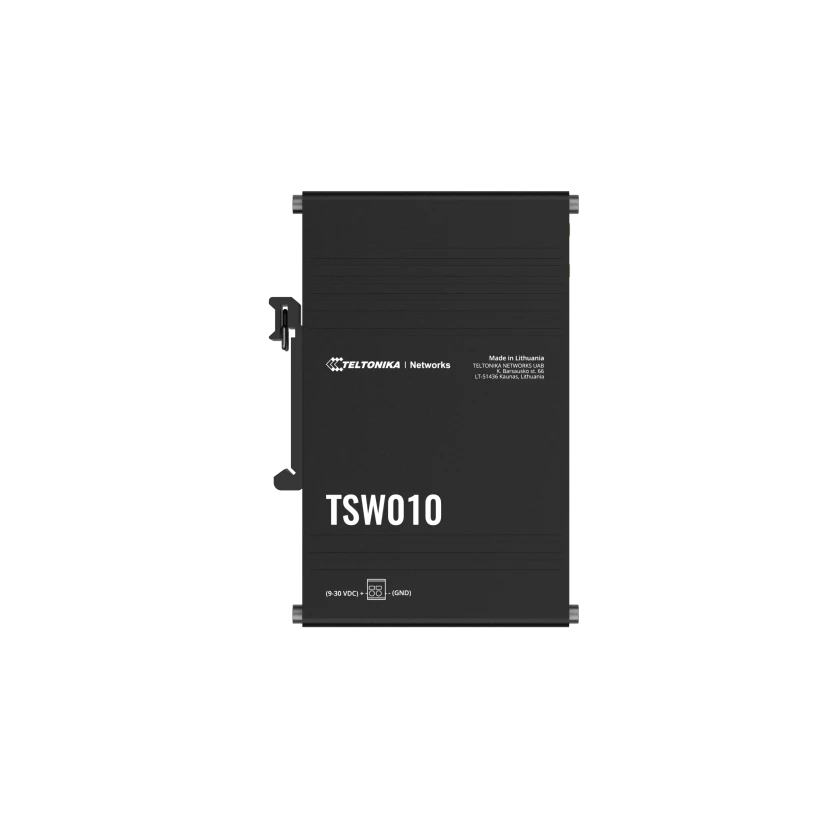

TSW010 Industrial Ethernet Switch

Ethernet

• ETH: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3x, 802.3az

Industrial Protocols

• Profinet: Profinet Class A conformance (available with optional order code)

Performance Specifications

• Bandwidth (Non-blocking): 1 Gbps
• MAC address table size: 2K entries
• Jumbo frame support: 2048 bytes

Power

• Connector: 2-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC
• PoE (passive): Power via ETH1 port (not IEEE802.3 compliant), Mode B, 9 - 30 VDC
• Power consumption: Idle: 0.3 W / Max: 0.9 W

Physical Interfaces

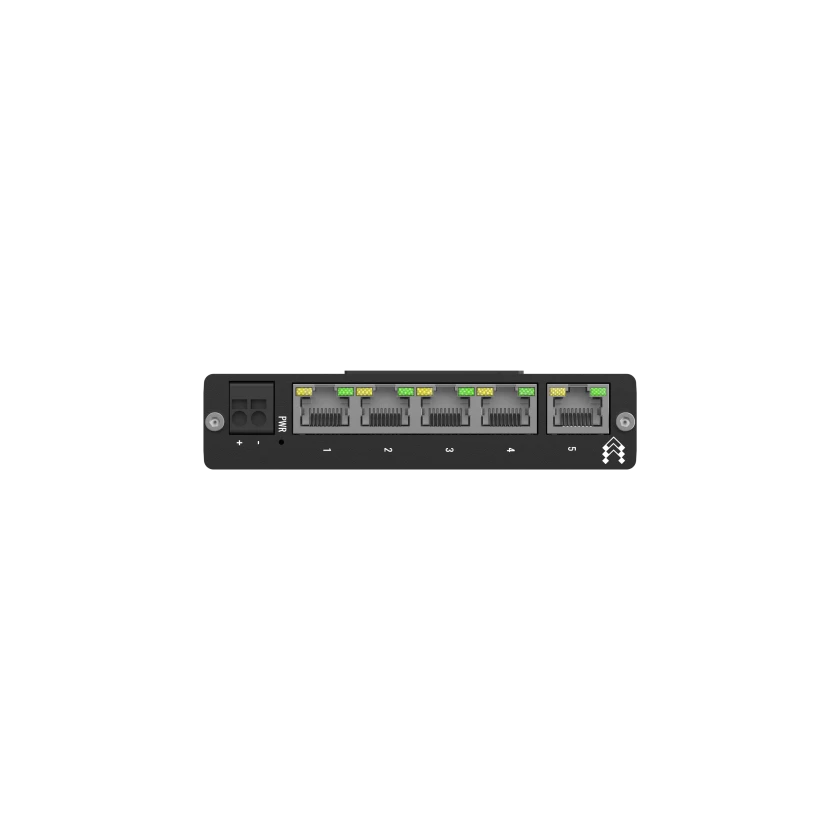

• Ethernet: 5 x RJ45 ports, 10/100 Mbps
• Status LEDs: 1 x Power LED, 10 x ETH status LEDs
• Power: 1 x 2-pin industrial DC power socket

Physical Specifications

• Casing material: Aluminium housing
• Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
• Weight: 146.5 g

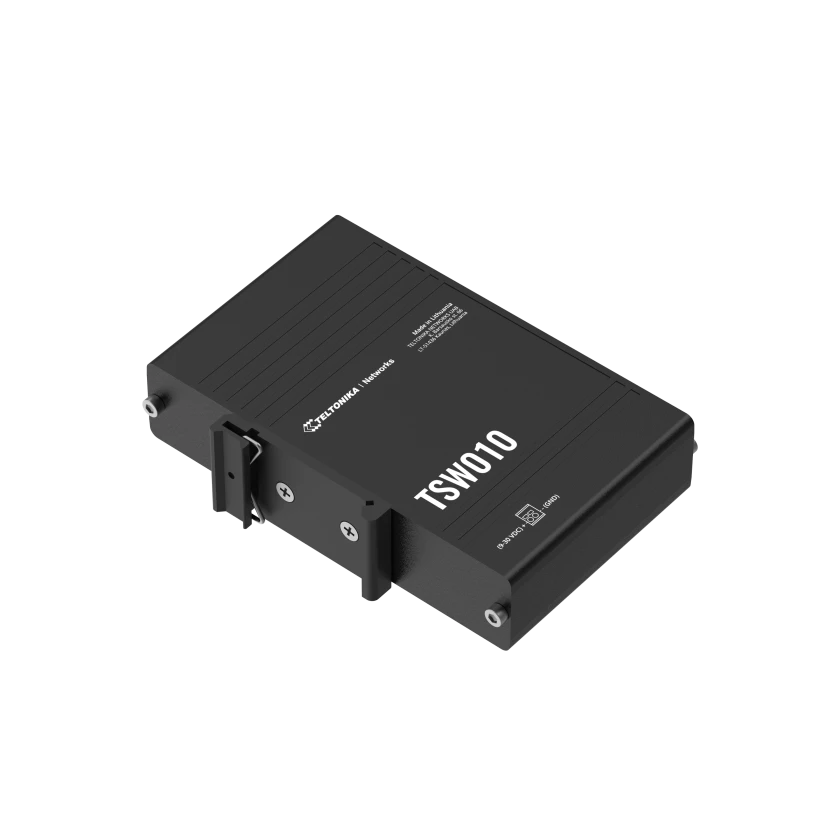

• Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety

EMC Emissions & Immunity

• Standards: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN IEC 61000-4-3:2020
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
• CS: EN 61000-4-6:2014

Safety

• CE: EN IEC 62368-1:2020 + A11:2020
• RCM: AS/NZS 62368.1:2022
• CB: IEC 62368-1:2018

Safety (Ordinary Locations)

• UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. Dec 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. Dec 13, 2019)
