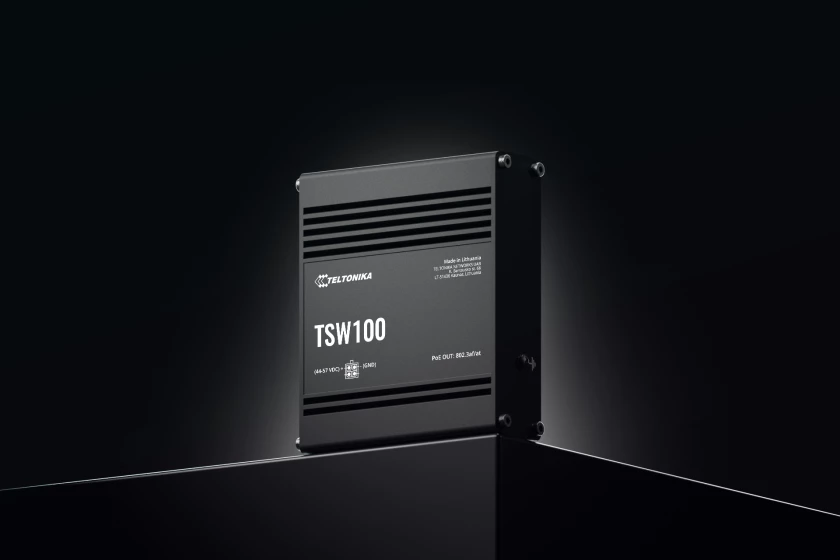

TSW100 Unmanaged PoE+ Ethernet Switch

Ethernet

• ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

• Profinet: Profinet Class A conformance (available with optional order code)

PoE Out

• PoE+ Ports: Port 1 – 4
• PoE Standards:
  • IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****)
  • IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****)
• PoE Max Power per Port (at PSE): 30 W
• PoE Power Budget (at PSE): 120 W

Performance Specifications

• Bandwidth (Non-blocking): 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Jumbo frame support: 9216 bytes

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 7 – 57 VDC
• PoE-Out input voltage range: 44 – 57 VDC
• Power consumption: Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

Physical Interfaces

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
• Status LEDs: 1 x Power LED, 10 x ETH status LEDs
• Power: 1 x 4-pin power connector
• Other: 1 x Grounding screw

Physical Specifications

• Casing material: Full aluminum housing
• Dimensions (W x H x D): 115 x 32.2 x 101.2 mm
• Weight: 350 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark

EMC Emissions & Immunity

• Standards: EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2.3
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014
• CS: EN 61000-4-6:2014
• DIP: EN 61000-4-11:2004

Safety

• Standards: IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020
