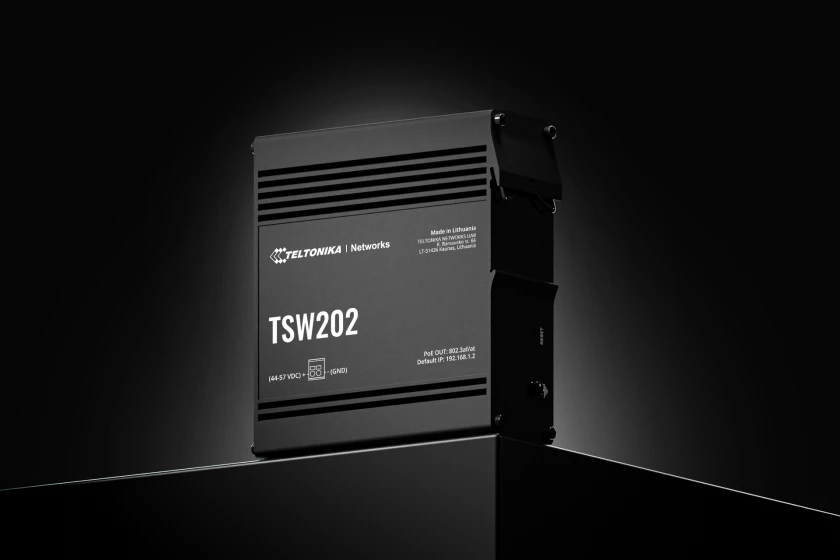

TSW202 PoE+ managed Ethernet Switch

Ethernet

• ETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Fibre

• SFP: 2 x SFP ports

IEEE 802.3 Series Standards

• Supported Standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

• Profinet: Profinet Class B conformance (available with optional order code)

PoE Out

• PoE+ Ports: Port 1 – 8
• PoE Standards:
  • IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward)
  • IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16)
• PoE Max Power per Port (at PSE): 30 W
• Total PoE Power Budget (at PSE): 240 W
• Maximum Ethernet cable length: 100 m

Services

• EtherNet/IP: Yes
• SNMP V2, V3: Yes
• LLDP: Yes
• Network Management: 802.1p CoS, 802.1x port-based access, 802.1Q VLAN

Network

• MRP: MRP client and manager roles
• L2 Features: Loop protection, Forwarding table, VLAN, STP/RSTP
• DHCP: Server, client, static leases (MAC with wildcards)
• Port Settings: Enable/disable, speed control, isolation, PoE management, EEE (802.3az), port mirroring
• L3 Features: Static IPv4 & IPv6 routing, DHCPv6 client, static IPv6 address

Security

• Authentication: PAM (pre-shared key), RADIUS, TACACS+, IP/login attempts blocking
• MAC Filtering: Allow specific MACs; ignore/disable port on unauthorized access

QoS

• QoS: Port priority, DSCP, 802.1p, TOS
• Scheduling Method: SP, WFQ, WRR
• Bandwidth Control: Rate limiting, storm control
• Traffic Shaper: Port-based shaping

Diagnostics

• Tools: Cable diagnostic, ping, traceroute, nslookup
• Ping Reboot: Restart PoE on specific port

API

• Teltonika Web API (beta): Configurable API endpoints — View Documentation

System Characteristics

• RAM: 128 MB DDR3
• FLASH Storage: 16 MB serial flash

Firmware / Configuration

• WEB UI: FW update, config profiles, backup
• FOTA: Remote FW updates
• RMS: Bulk FW/configuration updates
• Keep Settings: FW updates without losing config

Firmware Customisation

• Operating System: TSWOS (OpenWrt-based)
• Supported Languages: BusyBox shell, Lua, C, C++
• Dev Tools: SDK with build environment

Performance Specifications

• Bandwidth (Non-blocking): 20 Gbps
• Forwarding rate: 14.88 Mpps
• Packet buffer: 512 KB
• MAC address table size: 8K entries
• Jumbo frame support: 10000 bytes

Power

• Connector: 2-pin industrial DC power socket
• Input voltage range: 7 – 57 VDC
• PoE-Out input voltage range: 44 – 57 VDC
• Power consumption: Idle: < 3 W / Max: 8 W / PoE Max: 248 W

Physical Interfaces

• Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
• Fibre: 2 x SFP ports
• Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH LEDs, 2 x SFP LEDs
• Power: 1 x 2-pin DC power socket
• Reset: Software reset button
• Other: 1 x Grounding screw

Physical Specifications

• Casing material: Anodized aluminum housing and panels
• Dimensions (W x H x D): 132 x 44.2 x 122.2 mm
• Weight: 610 g
• Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI, JATE, Kenya, ICASA, Giteki, UL Safety

EMC Emissions & Immunity

• Standards: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN IEC 61000-4-3:2020
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
• CS: EN 61000-4-6:2014
• DIP: EN 61000-4-11:2020

Safety

• Standards: CE: EN IEC 62368-1:2020 + A11:2020, RCM: AS/NZS 62368.1:2022, CB: IEC 62368-1:2018

Safety (Ordinary Locations)

• Standards: UL 62368-1 (3rd Ed., Rev. Dec 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. Dec 13, 2019)
