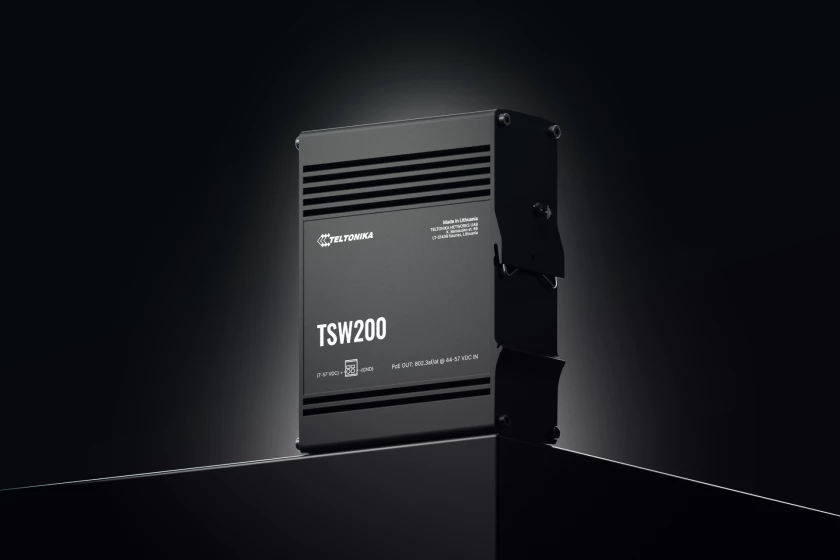

TSW200 PoE+ Ethernet Switch

Ethernet

• ETH: 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
• Fibre: 2 x SFP ports
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

• Profinet: Profinet Class A conformance (available with optional order code)

PoE Out

• PoE+ Ports: Port 1 – 8
• PoE Standards:
  • IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)
  • IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1–41)
• PoE Max Power per Port (at PSE): 30 W
• Total PoE Power Budget (at PSE): 240 W

Performance Specifications

• Bandwidth (Non-blocking): 20 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Jumbo frame support: 9216 bytes

Power

• Connector: 2-pin industrial DC power socket
• Input voltage range: 7 – 57 VDC
• PoE-Out input voltage range: 44 – 57 VDC
• Power consumption: Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W

Physical Interfaces

• Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
• Fibre: 2 x SFP ports
• Status LEDs: 1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs
• Power: 1 x 2-pin industrial DC power socket
• Other: 1 x Grounding screw

Physical Specifications

• Casing material: Full aluminum housing
• Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
• Weight: 517 g
• Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, CITC, ANRT, FCC, IC, CB

EMC Emissions & Immunity

• Standards:
  • EN 55032:2015 + A1:2020
  • EN 55035:2017 + A11:2020
  • EN IEC 61000-3-2:2019 + A1:2021
  • EN 61000-3-3:2013 + A1:2019
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN IEC 61000-4-3:2020
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
• CS: EN 61000-4-6:2014
• DIP: EN IEC 61000-4-11:2020

Safety

• Standards: IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020
