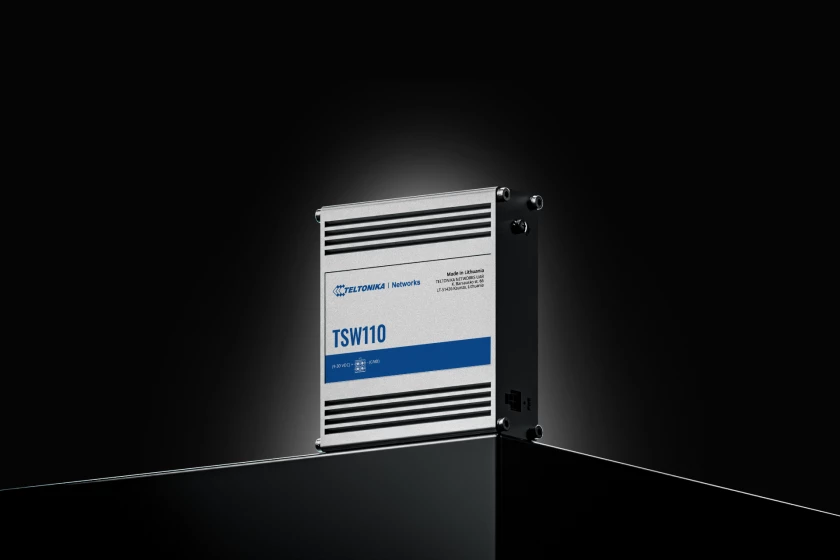

TSW110 L2 Unmanaged Ethernet Switch

Ethernet

• ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

• Profinet: Profinet Class A conformance (available with optional order code)

Performance Specifications

• Bandwidth (Non-blocking): 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Jumbo frame support: 9216 bytes

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC
• PoE (passive): Possibility to power up through ETH1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
• Power consumption: < 0.4 W / < 1.8 W

Physical Interfaces

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
• Status LEDs: 1 x Power LED, 10 x ETH status LEDs
• Power: 1 x 4-pin power connector
• Other: 1 x Grounding screw

Physical Specifications

• Casing material: Full aluminum housing
• Dimensions (W x H x D): 100 x 30 x 85 mm
• Weight: 227 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM,
