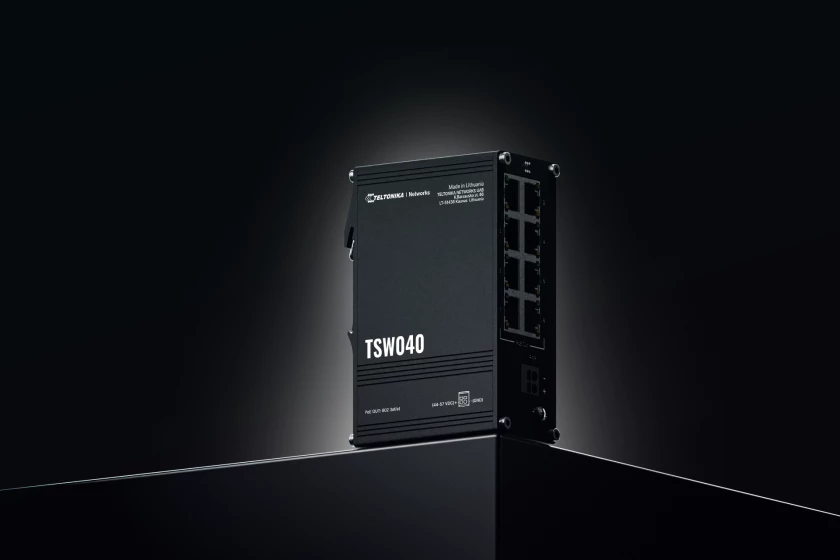

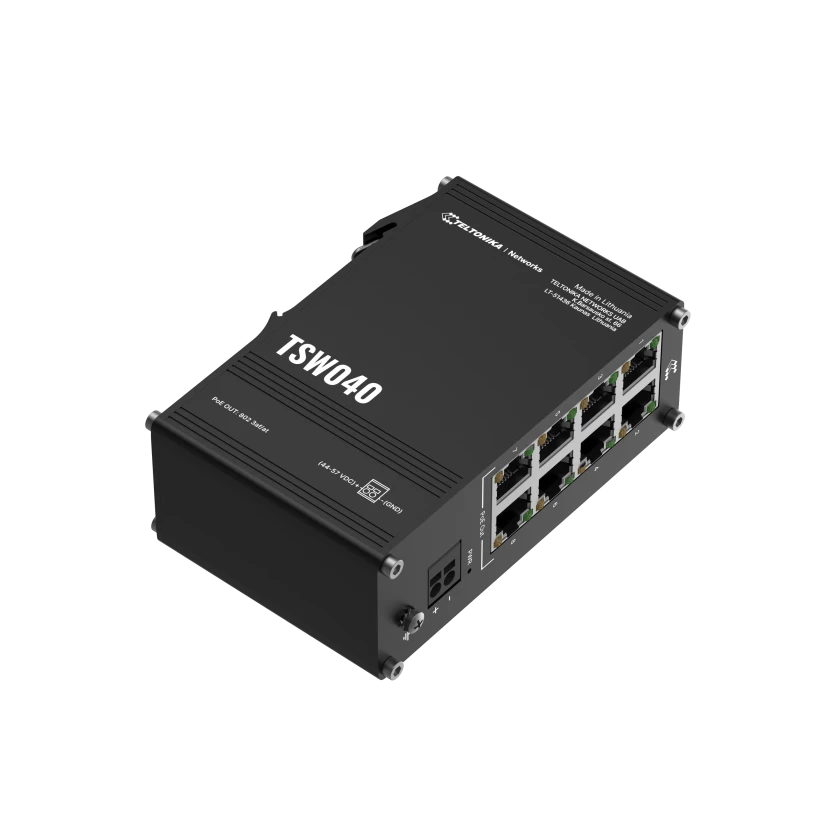

TSW040
Industrial 8-Port PoE+ Ethernet Switch – Built for Harsh Environments
The Teltonika TSW040 is a rugged industrial PoE+ switch designed for demanding environments such as factories, surveillance systems, and outdoor installations. With 8 Fast Ethernet ports and a total PoE power budget of 240W, it delivers reliable power and data connectivity for multiple devices.

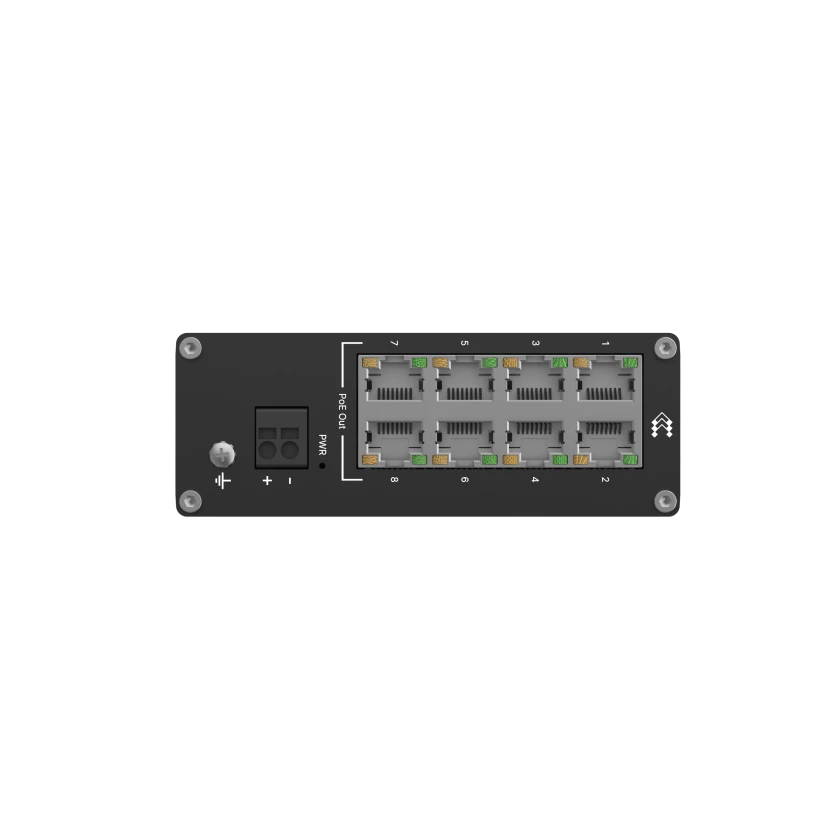

8 X PoE-out RJ45
Eight PoE-out Ethernet ports with a total power budget of 240 W
2-pin Power Input
Simple and suitable for industrial applications

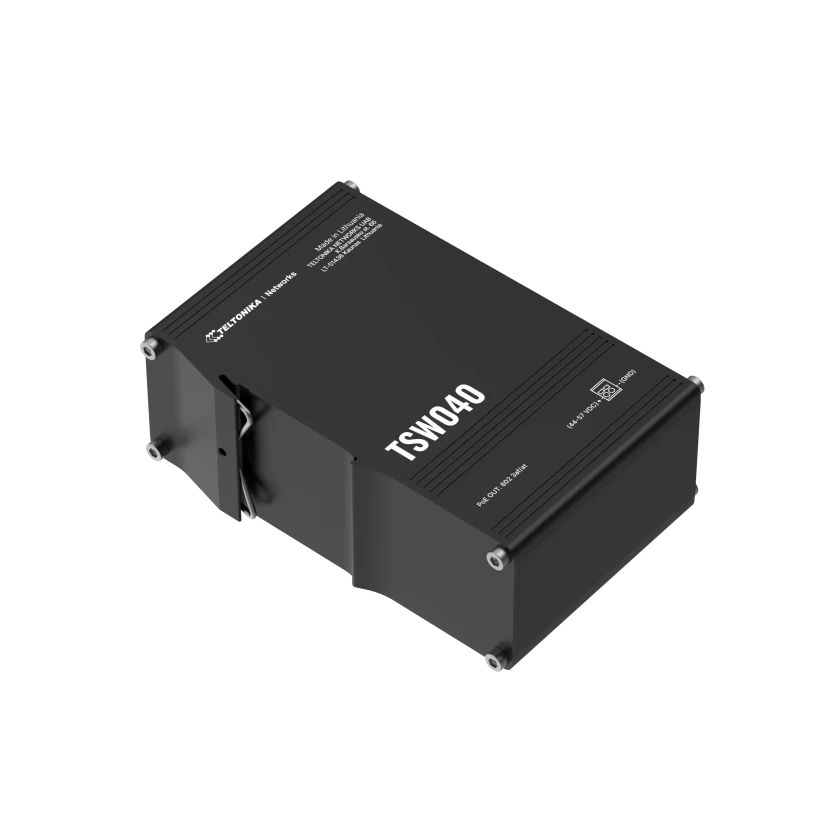

Integrated DIN Rail
Easy mounting for plug-and-play deployment
Wide Voltage Range
7-57 VDC, or 44-57 VDC for PoE-out
Industrial Ethernet Switch Specifications
| Specification | Details |
|---|---|
| Ethernet Ports | 8 x RJ45 ports, 10/100 Mbps, supports auto MDI/MDIX crossover |
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Industrial Protocols | Profinet Class A (optional) |
| PoE Ports | 8 x PoE+ ports (Ports 1–8) |
| PoE Standards | IEEE 802.3af (PoE) & IEEE 802.3at (PoE+), Mode B |
| Max Power per Port | 30W |
| Total PoE Budget | 240W |
| Switching Capacity | 20 Gbps (Non-blocking) |
| Packet Buffer | 128 KB |
| MAC Address Table | 2K entries |
| Jumbo Frame | Up to 9216 bytes |
| Power Input | 7–57 VDC, 2-pin industrial connector |
| PoE Input Voltage | 44–57 VDC |
| Power Consumption | Idle: 1W / Max: 2W / PoE Max: 246W |
| LED Indicators | 1 x Power LED, 16 x Ethernet LEDs |
| Housing | Anodized aluminium |
| Dimensions | 113.1 x 41.2 x 74.6 mm |
| Weight | 280 g |
| Mounting | DIN rail, wall mount (kit required) |
| Operating Temperature | -40°C to 75°C |
| Humidity | 5% – 95% non-condensing |
| Protection Rating | IP30 |
Reliable Performance
This industrial switch offers a non-blocking bandwidth of 20 Gbps and supports jumbo frames up to 9216 bytes, ensuring smooth and efficient data transmission across all connected devices.
Designed for Industrial Applications
- CCTV and IP surveillance systems
- Industrial automation and control systems
- Smart factories and IoT deployments
- Outdoor and harsh environment networking
Why Choose the TSW040?
Unlike standard network switches, the Teltonika TSW040 is built to withstand extreme temperatures, voltage fluctuations, and industrial conditions. Its compact design and DIN rail mounting make it ideal for professional installations.
Industrial 8-Port PoE+ Ethernet Switch with 240W power budget, DIN rail mounting, and rugged aluminum housing. Ideal for CCTV, automation, and harsh environments.
