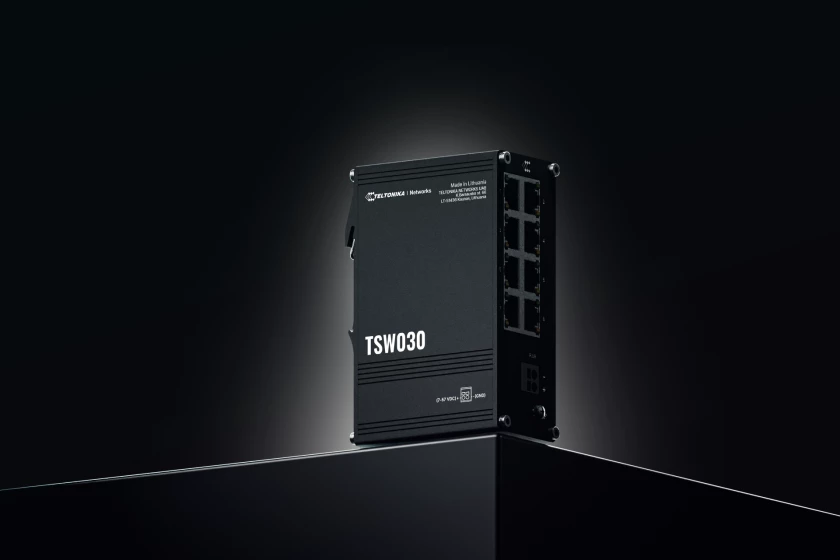

TSW030 8-port Ethernet Switch

Ethernet

• ETH: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

• Profinet: Profinet Class A conformance (available with optional order code)

Performance Specifications

• Bandwidth (Non-blocking): 20 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Jumbo frame support: 9216 bytes

Power

• Connector: 2-pin industrial DC power socket
• Input voltage range: 7 – 57 VDC
• Overvoltage protection: 60V max
• Reverse polarity protection: 80V max
• Surge protection: min 64.4V / max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A reverse surge current
• Power consumption: Idle: 0.5 W / Max: 1.5 W

Physical Interfaces

• Ethernet: 8 x RJ45 ports, 10/100 Mbps
• Status LEDs: 1 x Power LED, 16 x ETH status LEDs
• Power: 1 x 2-pin industrial DC power socket
• Other: 1 x Grounding screw

Physical Specifications

• Casing material: Anodized aluminum housing and panels
• Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm
• Weight: 256 g
• Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• UL Safety: Safety for Ordinary Locations

Standards

• UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. Dec 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. Dec 13, 2019)
